TZE Innovations Corporation

AFC Pressure Management System

Comprehensive pressure management system for water distribution networks, reducing water losses and pipe bursts.

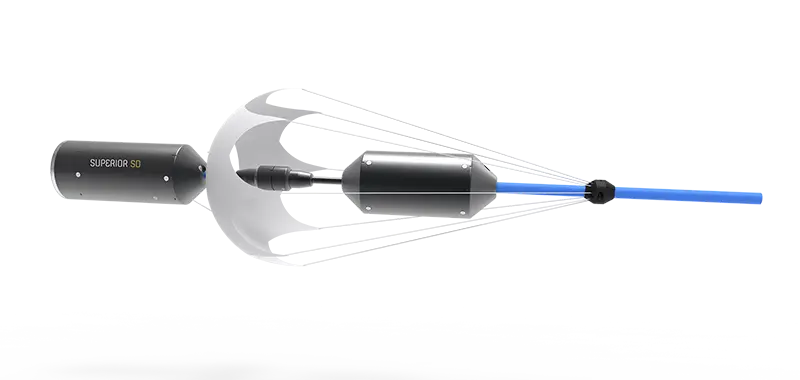

SUPERIOR SD

Cost-effective solution for basic inspection of water mains. Deployment range: ≥DN200 Access fitting: ≥DN80 Camera resolution: 2.0 Megapixels, 1920×1080P

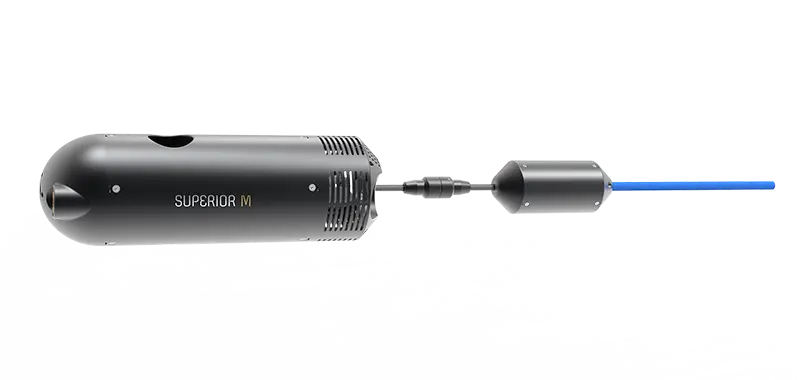

SUPERIOR M

Applied with no water speed and control moving direction. Deployment range: ≥DN500 Access fitting: ≥DN150 Camera resolution: 2.0 Megapixels, 1920×1080P

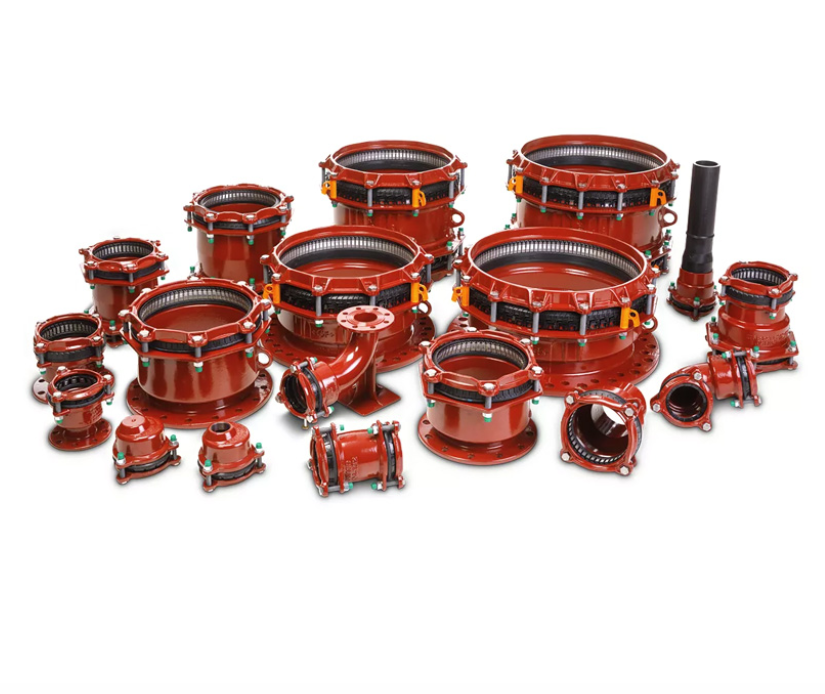

Waga MULTI/JOINT

Quick, safe, and simple pipe network connections without special tools — universal compatibility for gas and water pipelines.

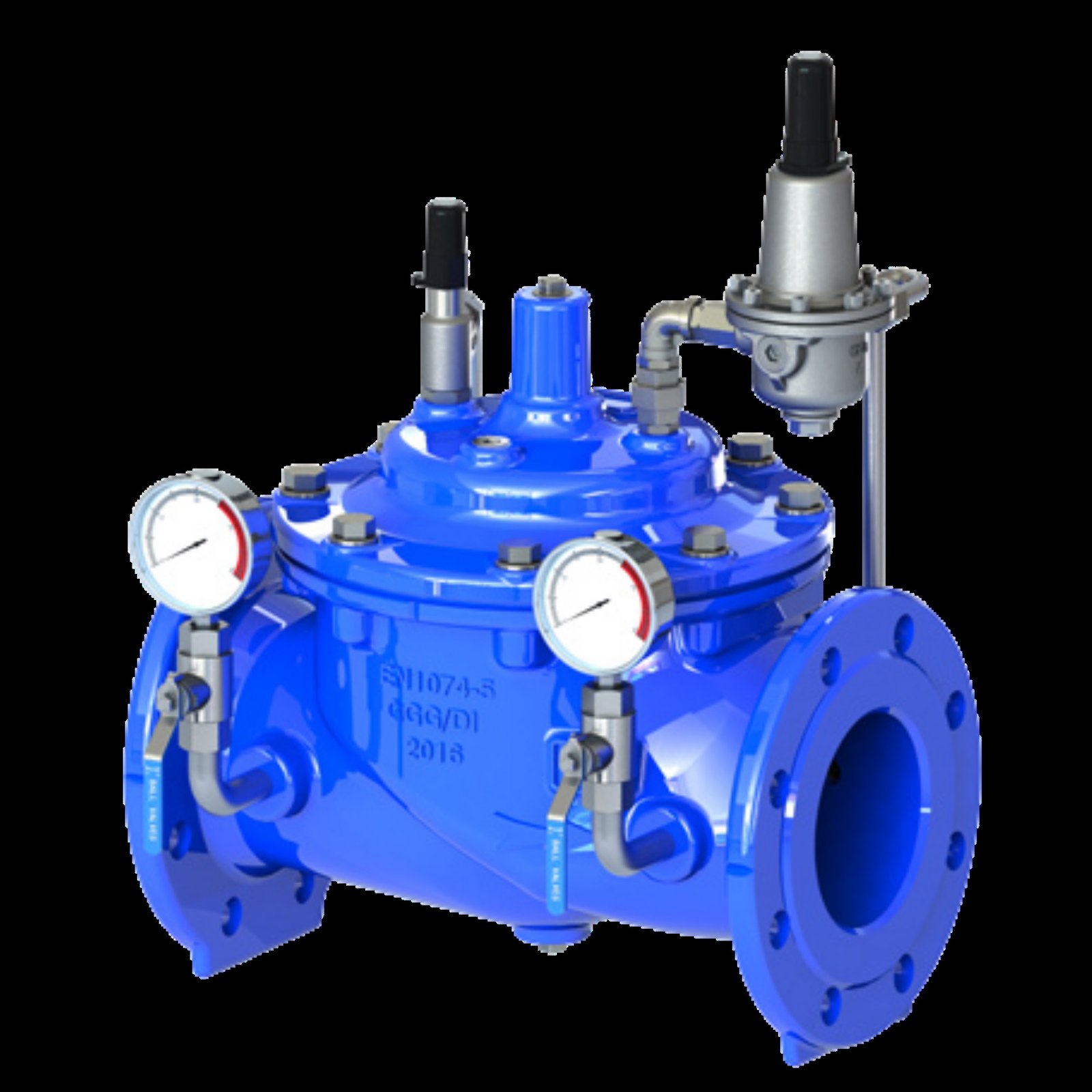

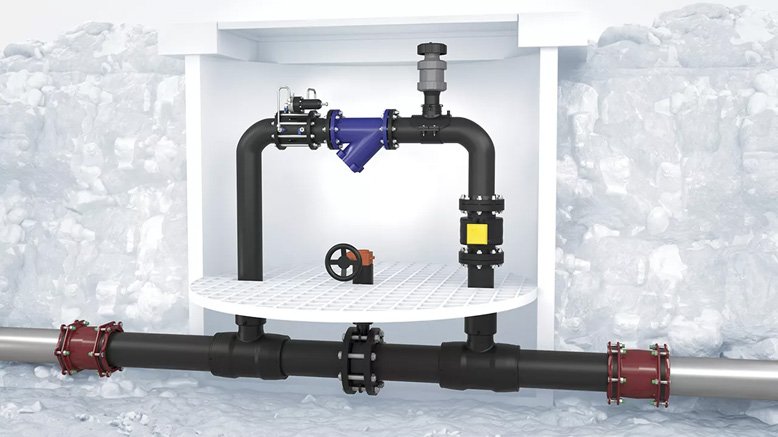

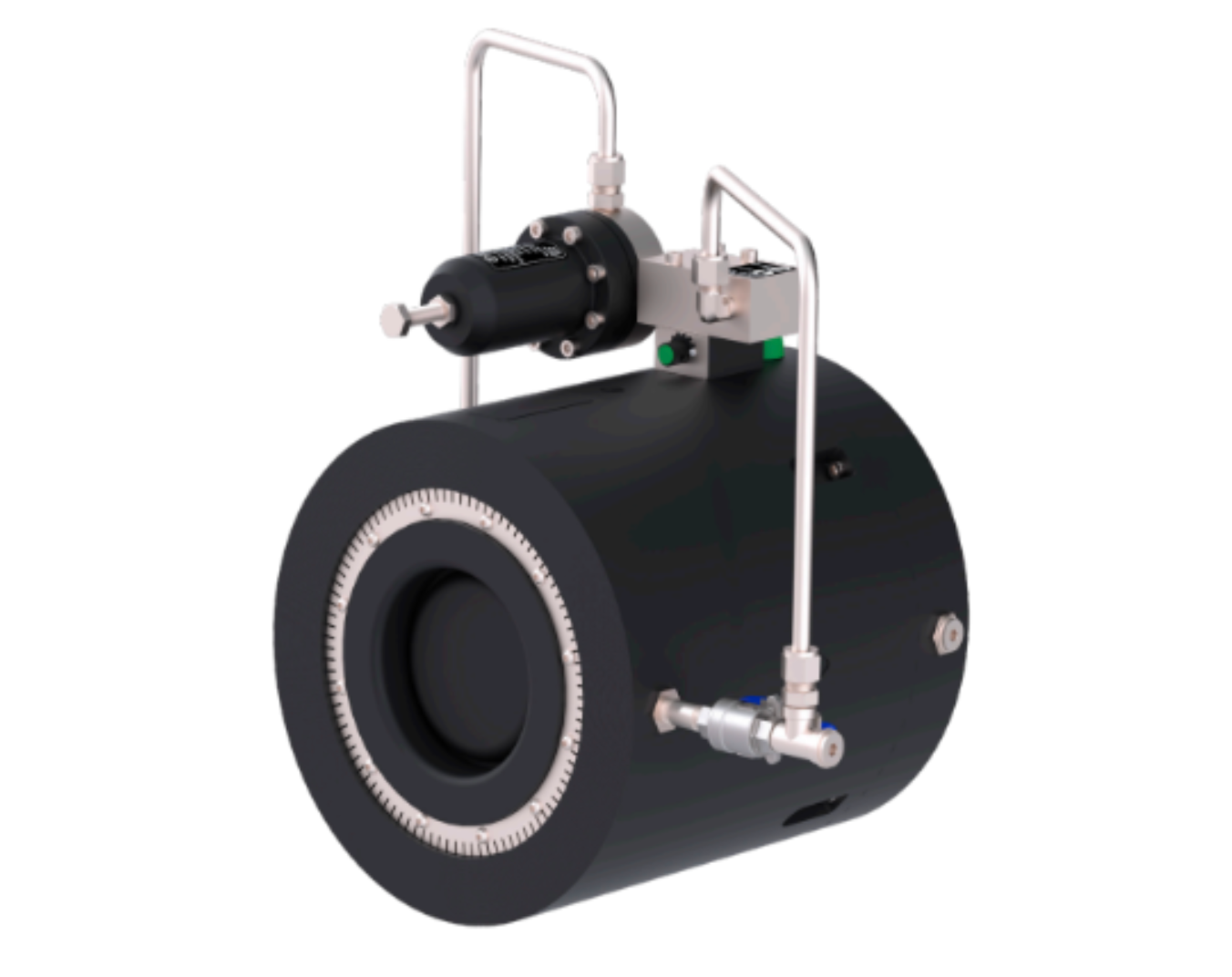

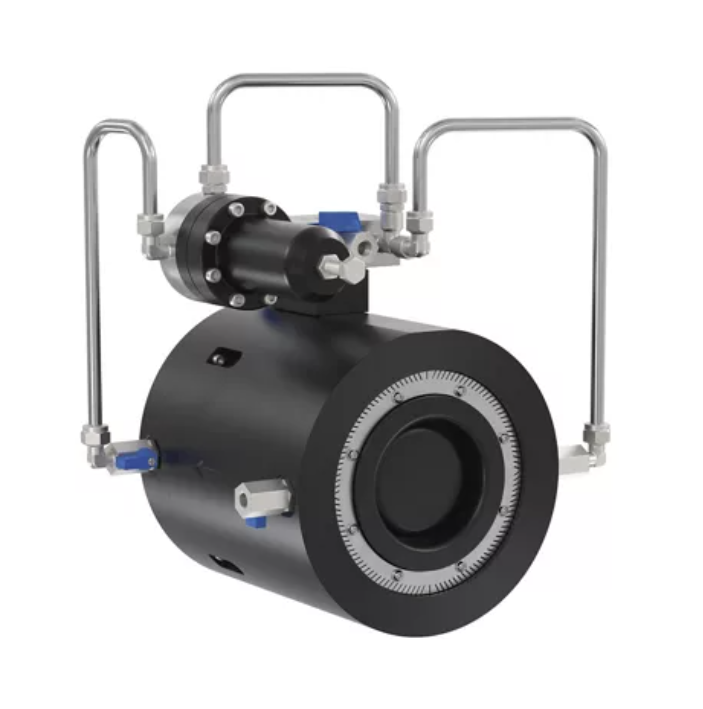

NeoFlow Pressure Reducing Valve (PRV)

Protect your water distribution network from excess pressure and reduce leakage rates and pipe bursts. NeoFlow is a state-of-the-art technology for pressure management that can prevent your pipes over-pressurizing while delivering accurate, stable flow, and increased flow capacity to utilities. Download Datasheets: DN50 - DN150 DN200 - DN300

NeoFlow Pressure Sustaining Valve (PSV)

The lightweight and compact NeoFlow Pressure Sustaining Valve is designed to protect upstream networks against insufficient or even negative pressure.

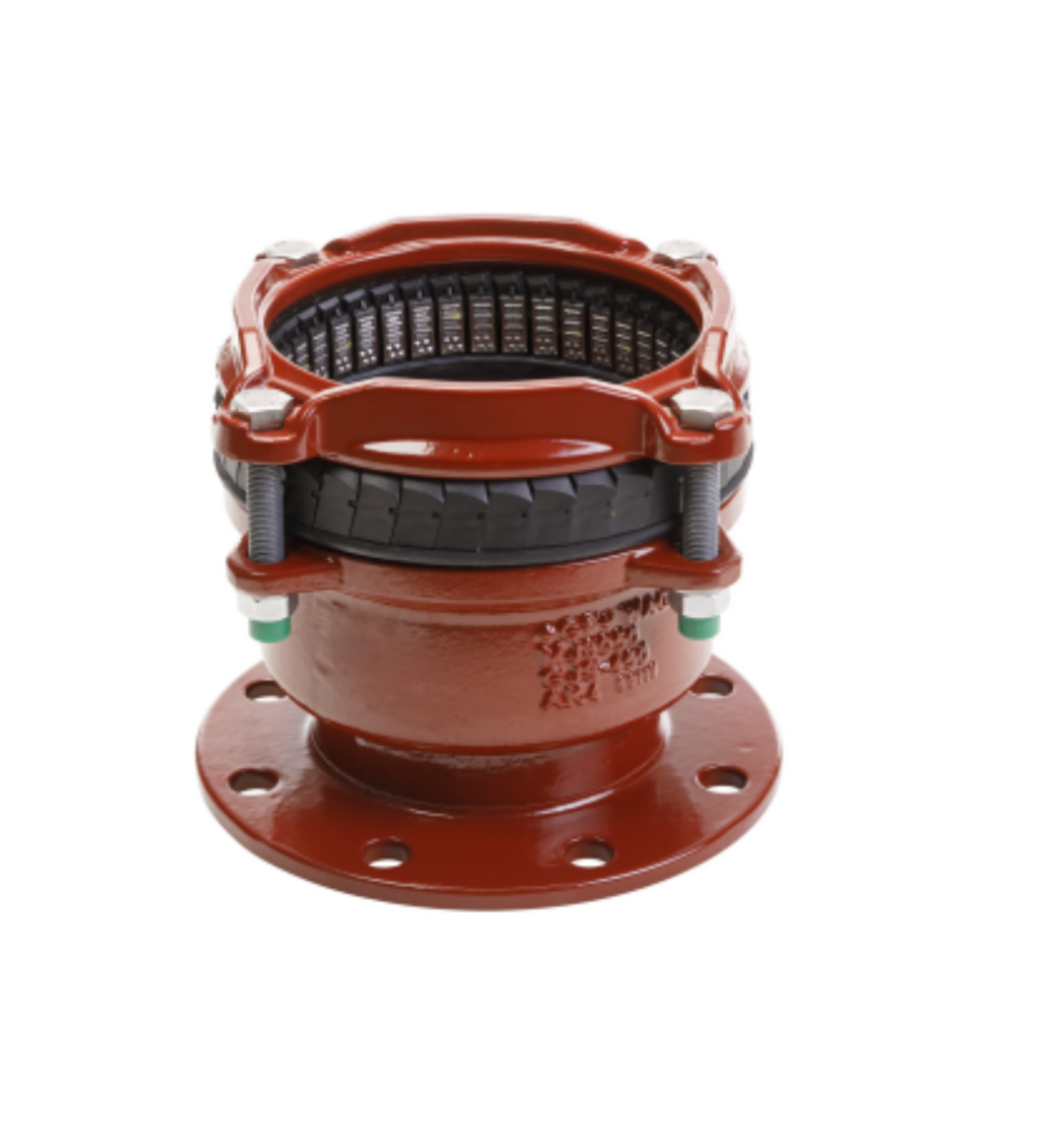

MULTI/JOINT® 3057 Plus Wide Range Flange adaptor, restraint, EPDM/A2 Code

Suitable for all kinds of pipe material Suitable for water and gas (EPDM only for potable water) Ductile iron GGG45 body and clamping ring(s), acc. to EN-GJS-450-10 RESICOAT® epoxy powder coating, according to GSK standards and EN 14901 NBR or EPDM gasket, NBR acc. to EN 682 (-5°C up to +50°C), EPDM acc. to EN 681-1 (0°C up to+50ºC) Angular deflection of max. 8° per socket at installation (based on the middle of the range) Stainless steel A4 quality (AISI 316) Uni/Fiksers Stainless steel A2 quality (AISI 304) or A4 quality (AISI 316) bolts, nuts and washers Hygiene protection included DN50 - DN1025

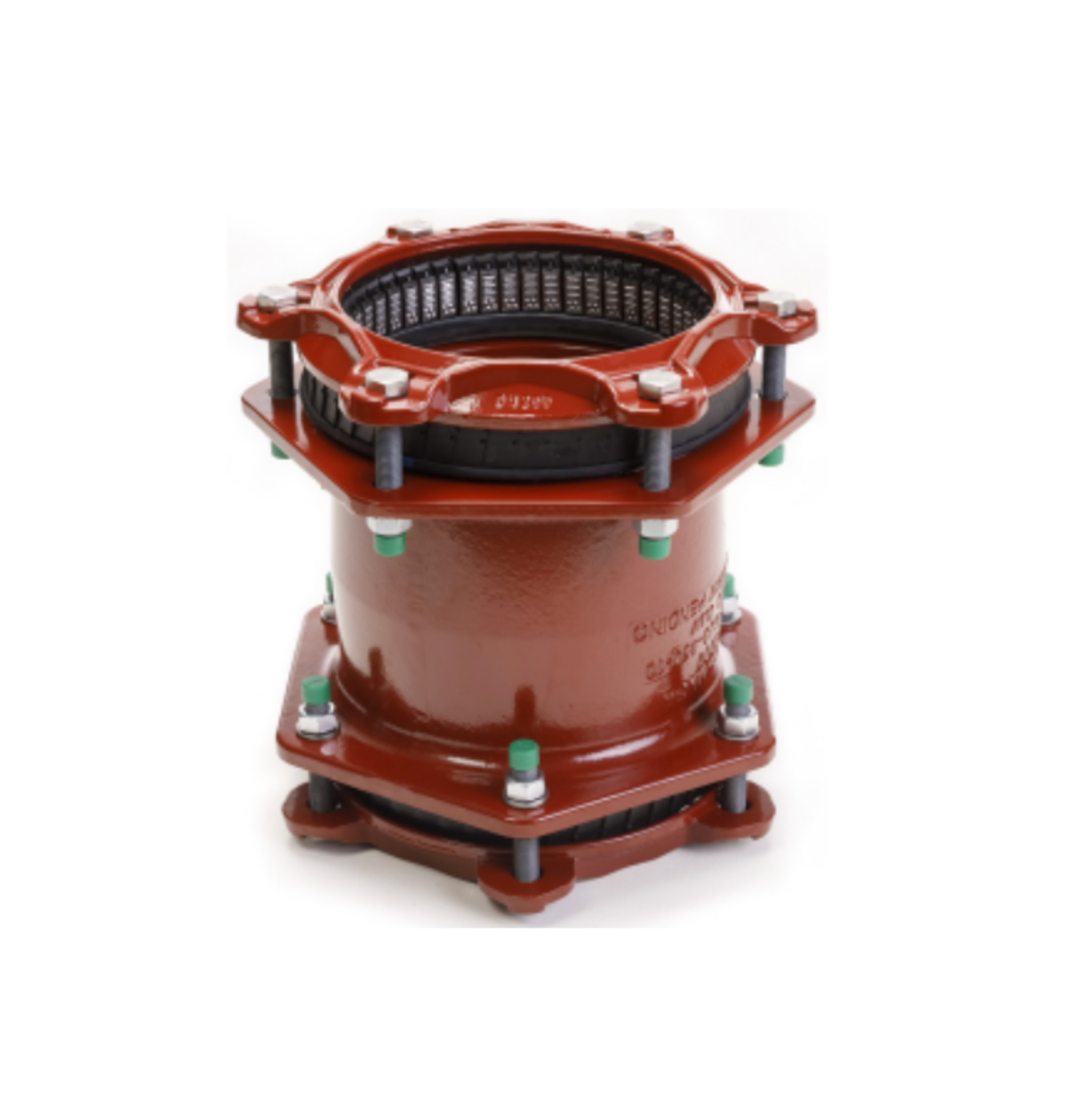

MULTI/JOINT® 3007 Plus Wide Range Coupling, restraint, EPDM/A2 Code

Suitable for all kinds of pipe material Suitable for water and gas (EPDM only for potable water) Ductile iron GGG45 body and clamping ring(s), acc. to EN-GJS-450-10 RESICOAT® epoxy powder coating, according to GSK standards and EN 14901 NBR or EPDM gasket, NBR acc. to EN 682 (-5°C up to +50°C), EPDM acc. to EN 681-1 (0°C up to +50ºC) Angular deflection of max. 8° per socket at installation (based on the middle of the range) Stainless steel A4 quality (AISI 316) Uni/Fiksers Stainless steel A2 quality (AISI 304) or A4 quality (AISI 316) bolts, nuts and washers Hygiene protection included DN50 - DN1025

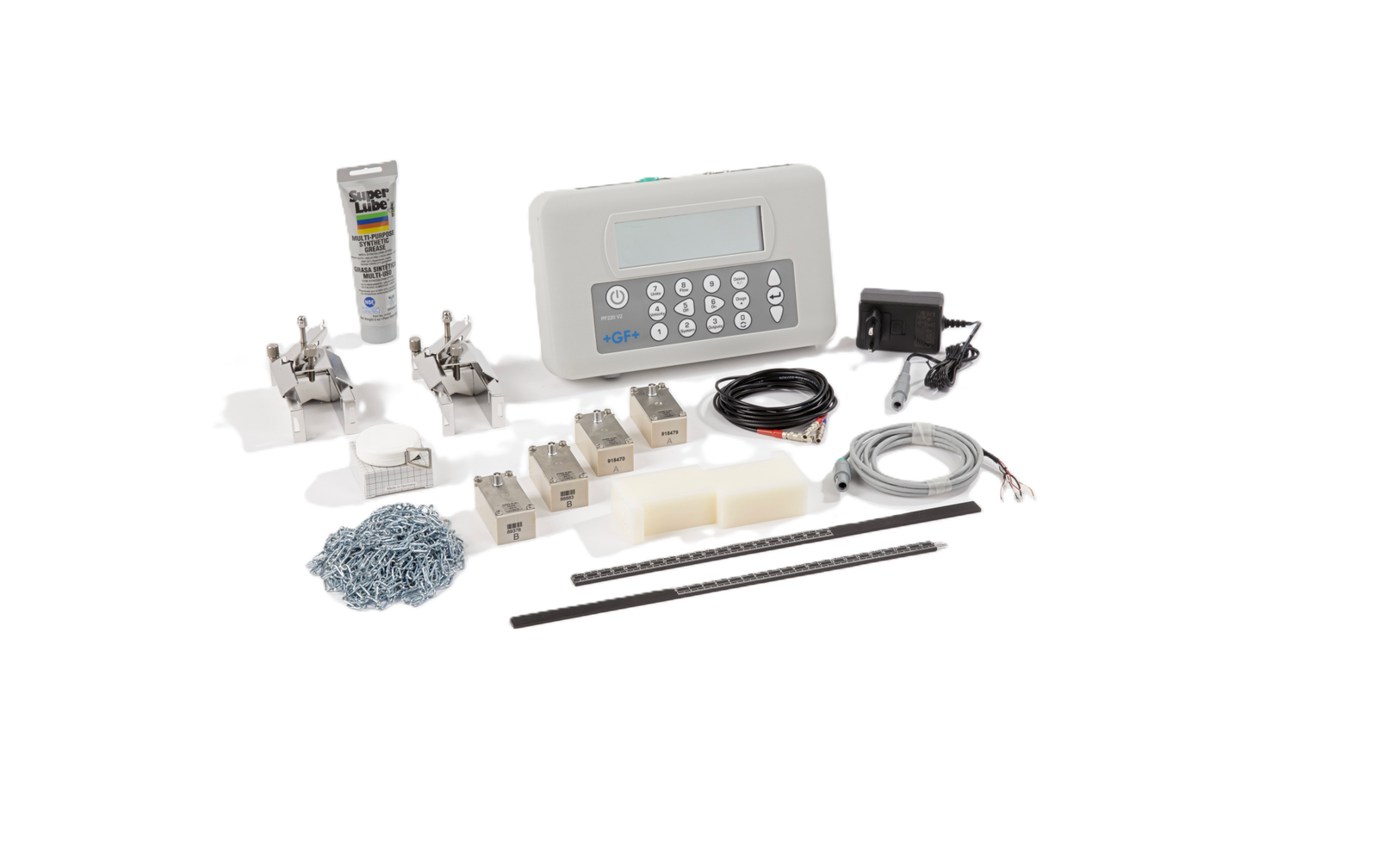

PF220 V2 Ultrasonic Flowmeter

• Portable design for temporary or semi-stationary use (up to 14 hours battery lifetime) • Easy, simple & accurate flow measurement on virtually any pipe • View measurements directly on-site with large, easy to read graphic display with backlighting • Connect to other systems with analog, pulse & alarm outputs Link to brochure: https://gf.showpad.com/share/F22n3xfpDYMQJJv9UfkX3

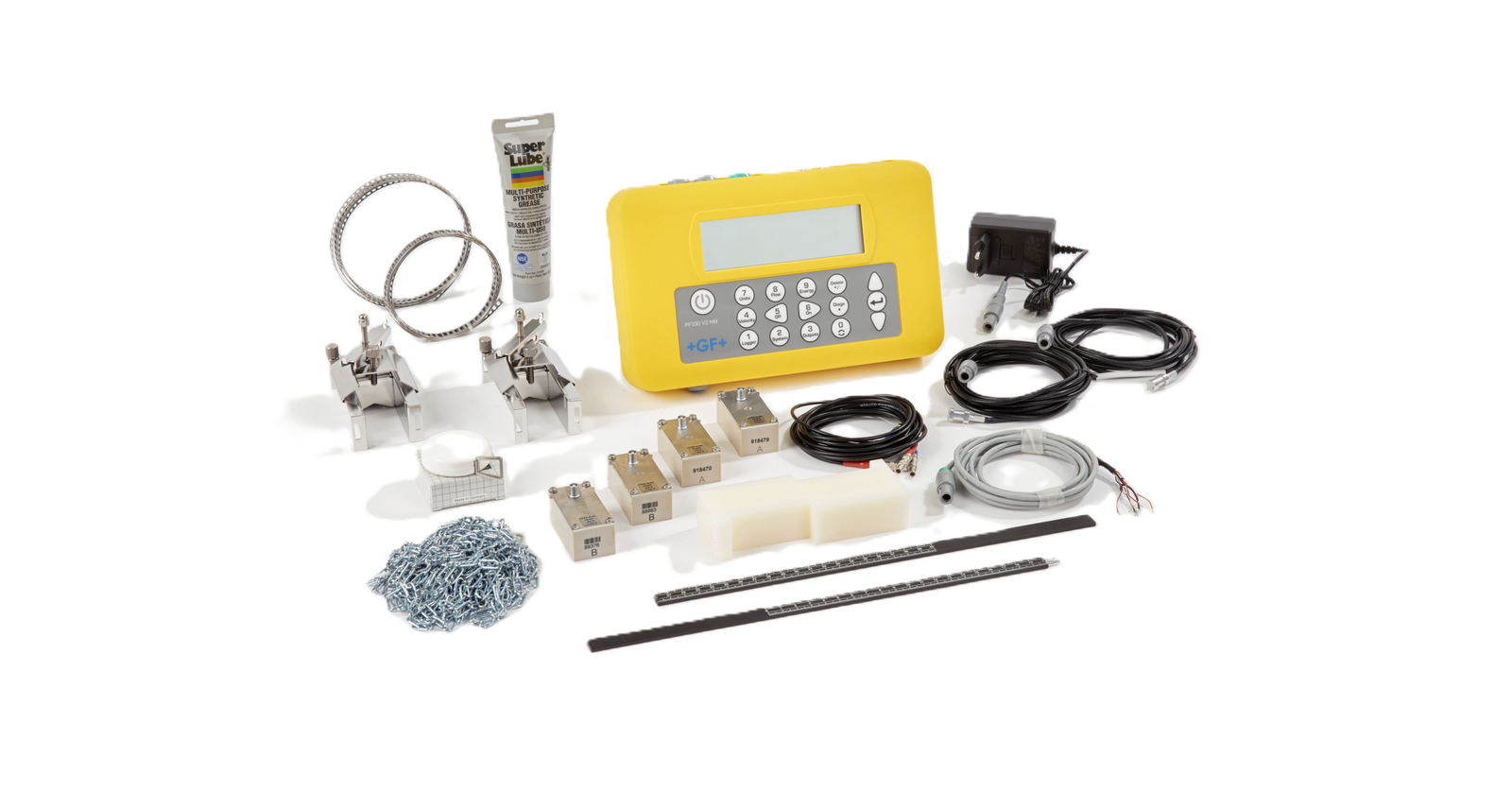

PF330 V2 Ultrasonic Flowmeter

• Portable design for temporary or semi-stationary use (up to 14 hours battery lifetime) • Easy, simple & accurate flow measurement on virtually any pipe • View measurements directly on-site with large, easy to read graphic display with backlighting • Log and analyze data with integrated datalogger (100 million datapoints) and USB interface for easy data export • Connect to other systems with analog, pulse & alarm outputs Link to brochure: https://gf.showpad.com/share/F22n3xfpDYMQJJv9UfkX3

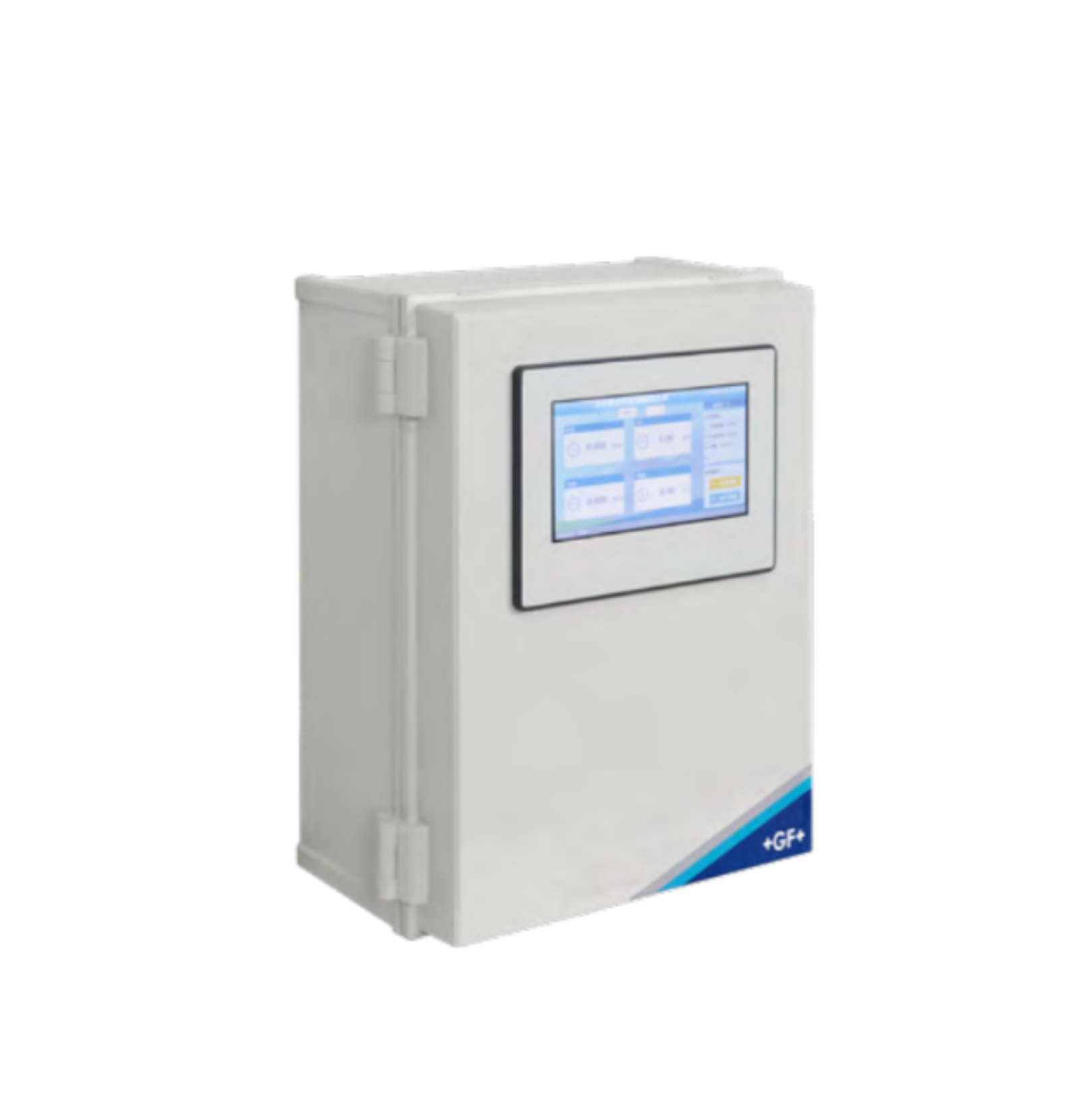

Multi-parameter Water Monitoring Solution DS100V2-01

• Residual Chlorine (0.02 to 5 mg/L) / Chlorine Dioxide (0.02 to 2 mg/L): • Three-Electrode Amperometric • Turbidity -0.02 to 20 NTU (Customizable: 0.02 to 100 NTU): 90° • Nephelometry • Temperature (-5 to 60 °C): Thermistor • pH (0 to 14): Glass Electrode

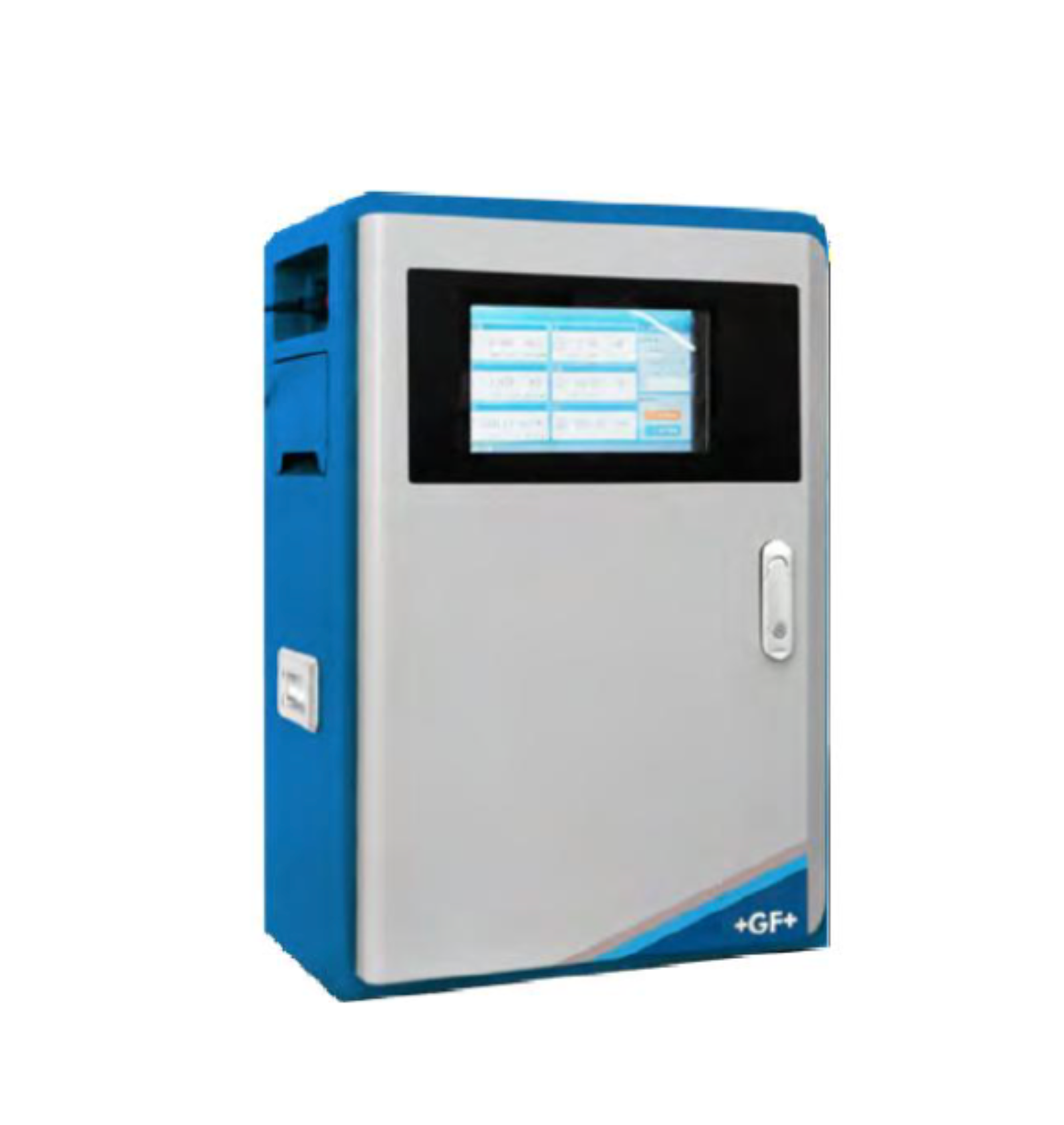

Multi-parameter Water Monitoring Solution DS200V2-01

• Residual Chlorine (0.02 to 5 mg/L) / Chlorine Dioxide (0.02 to 2 mg/L): • Three-Electrode Amperometric • Turbidity -0.02 to 20 NTU (Customizable: 0.02 to 100 NTU): 90° • Nephelometry • Temperature (-5 to 60 °C): Thermistor • pH (0 to 14): Glass Electrode

Multi-parameter Water Monitoring Solution DS600V2-01

• Residual Chlorine /Chlorine Dioxide (0.005 to 5 mg/L): DPD (Colorimetric) • Turbidity - 0.02 to 20 NTU (Customizable: 0.02 to 100 NTU): 90° • Nephelometry • Temperature (-5 to 60 °C): Thermistor • pH (0 to 14): Glass Electrode

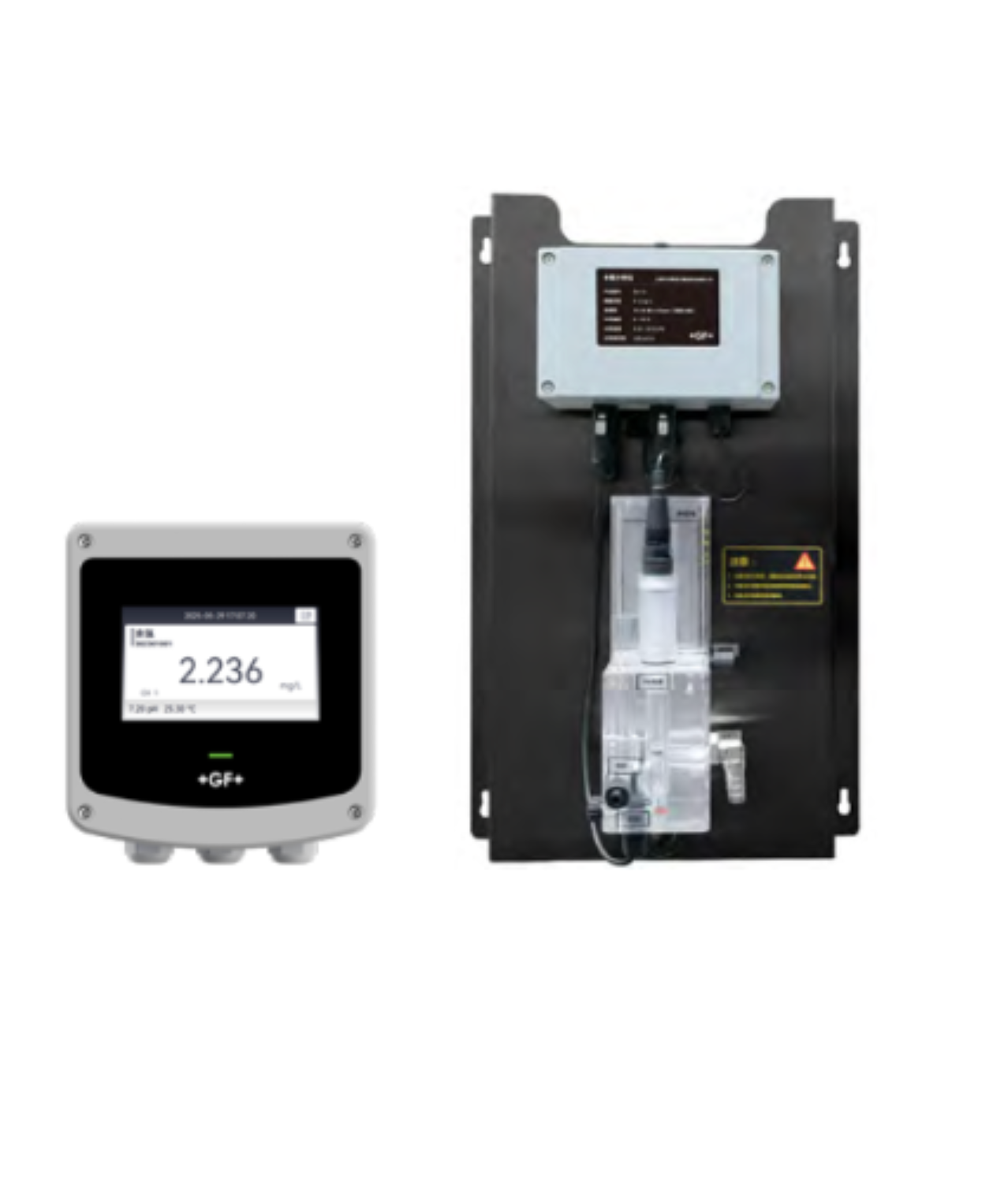

iCL 7630 V2 Chlorine Analyzer

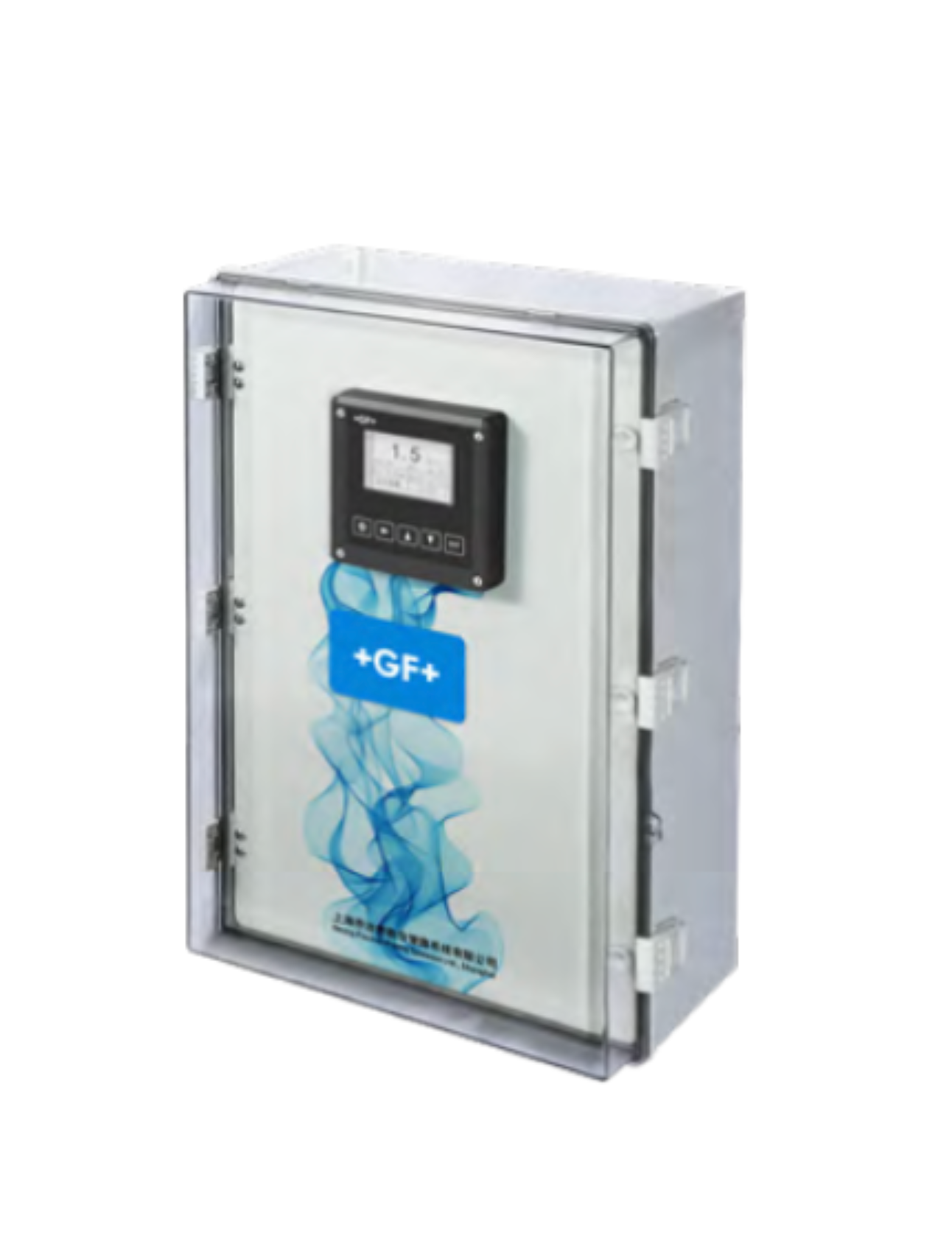

iTurb 4160 Turbidity Meter

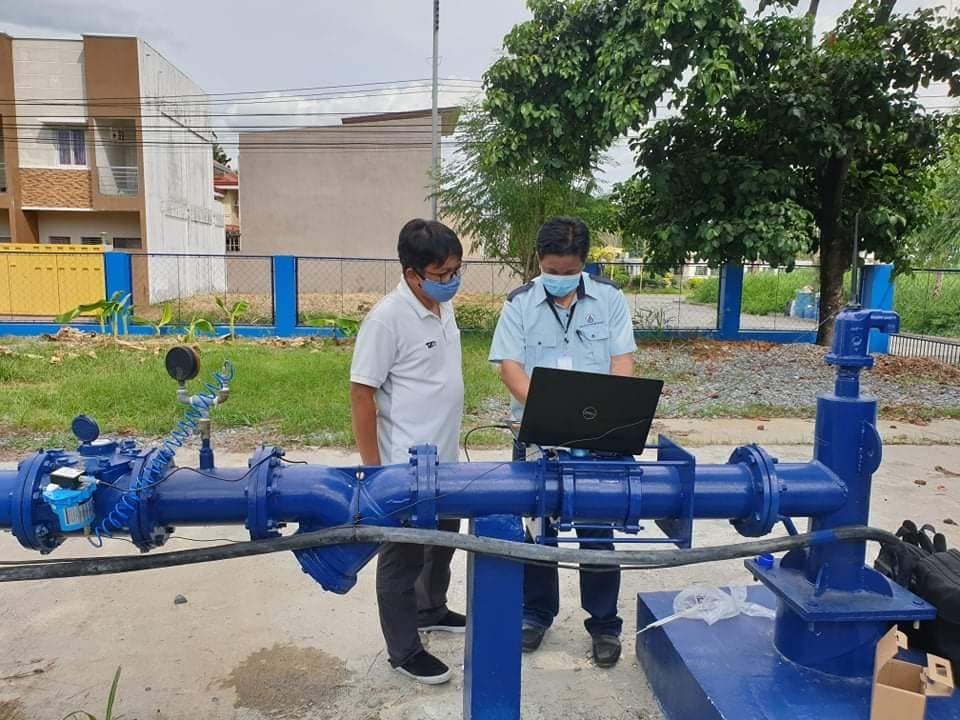

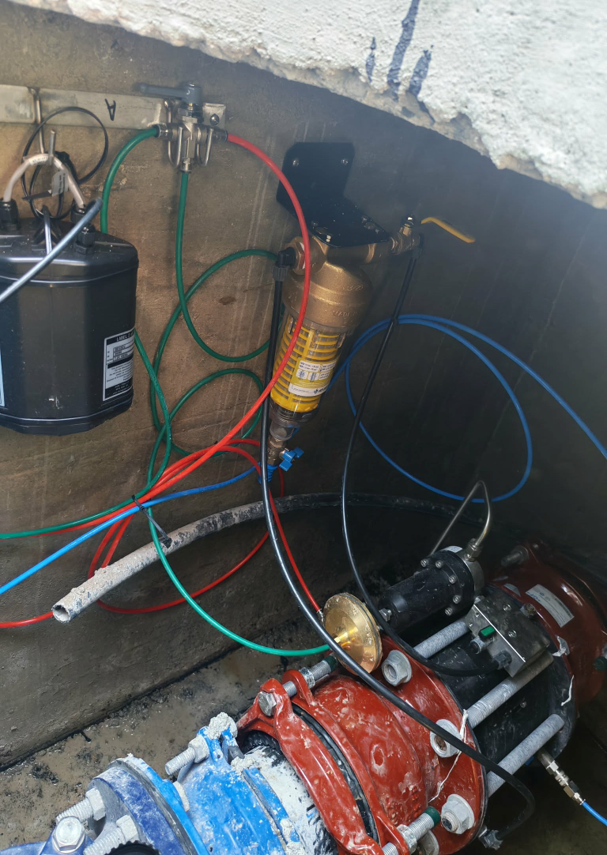

Laguna Water DN250 NeoFlow PRV in Brgy. Platero, Binan, Laguna

A smart pressure regulating valve to tackle NRW challenges Laguna Water is the trusted water and environmental services provider in the province of Laguna, Philippines. The company is responsible for delivering water supply services across rapidly developing urban and commercial zones

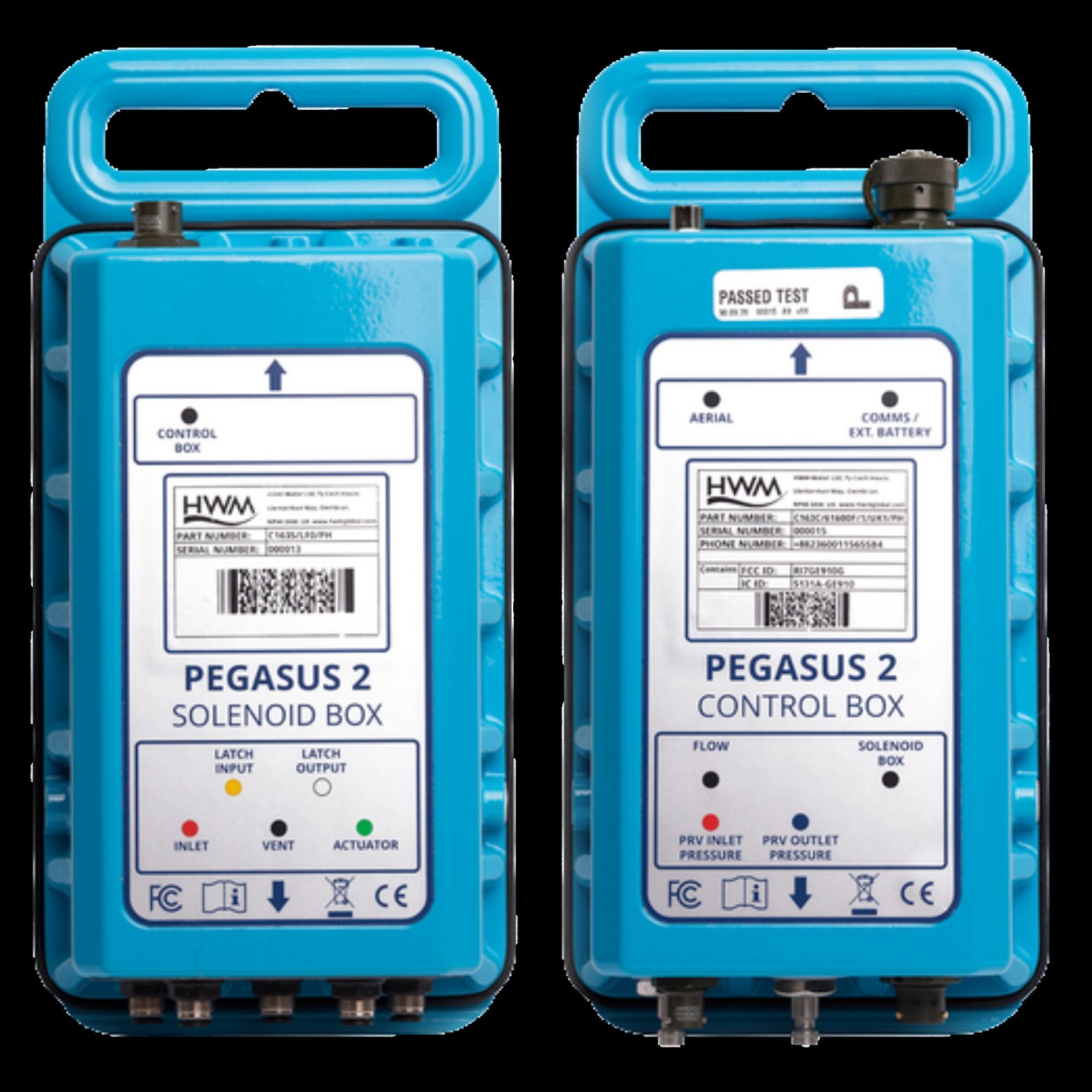

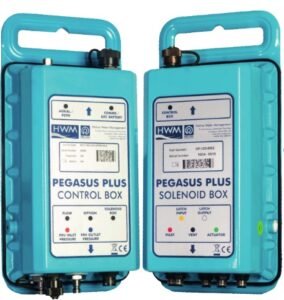

Pegasus N+ Network Monitor

Advanced network monitoring system providing real-time pressure and flow data across water distribution networks.

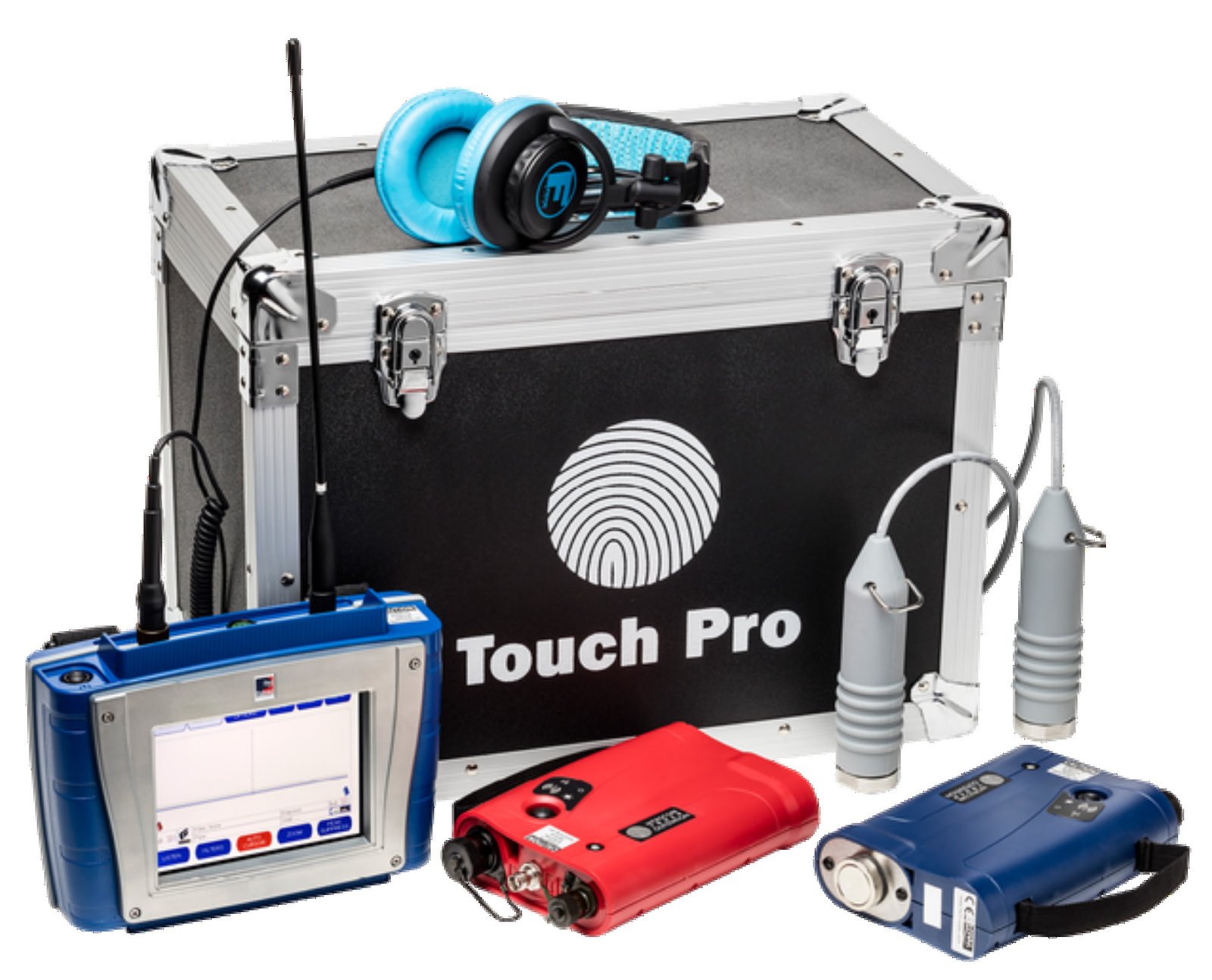

Touch Pro

Versatile data loggers for pressure, flow, and level monitoring with long battery life and remote telemetry capability.

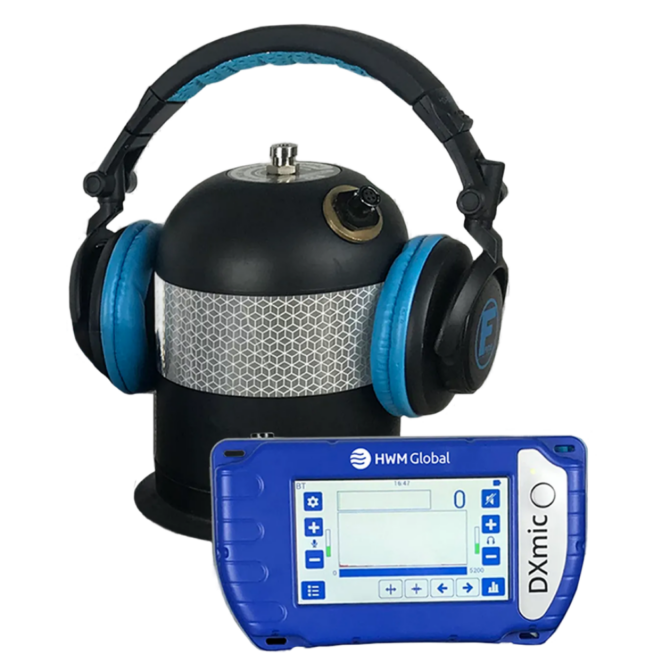

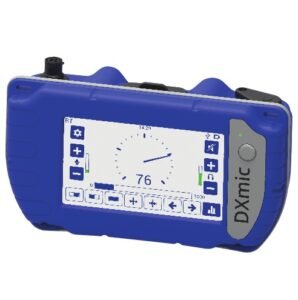

DXmic Pro Ground Microphone

Latest generation ground microphone featuring touch screen operation and innovative leak detection with digital signal processing.

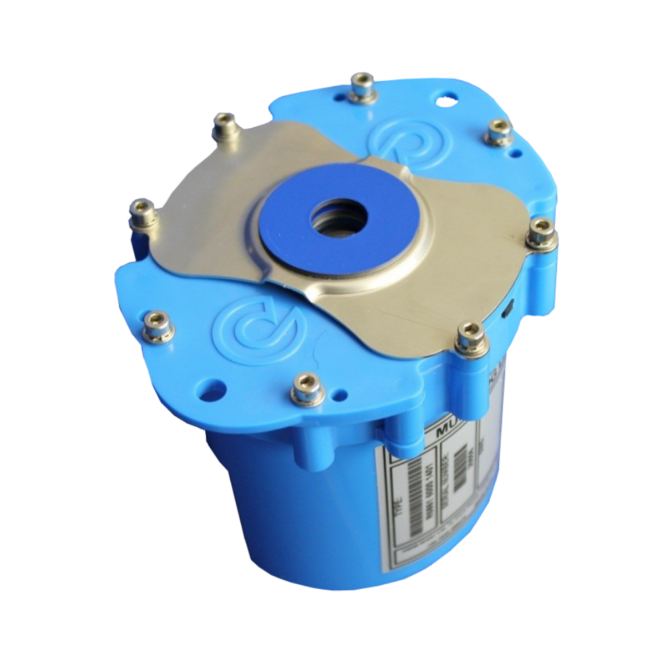

LX2 Data Logger

Highly versatile battery powered telemetry data logger with remote SMS/GPRS capability for water network monitoring.

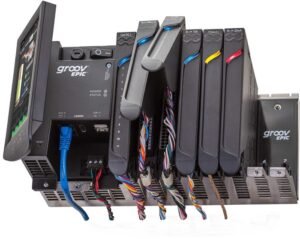

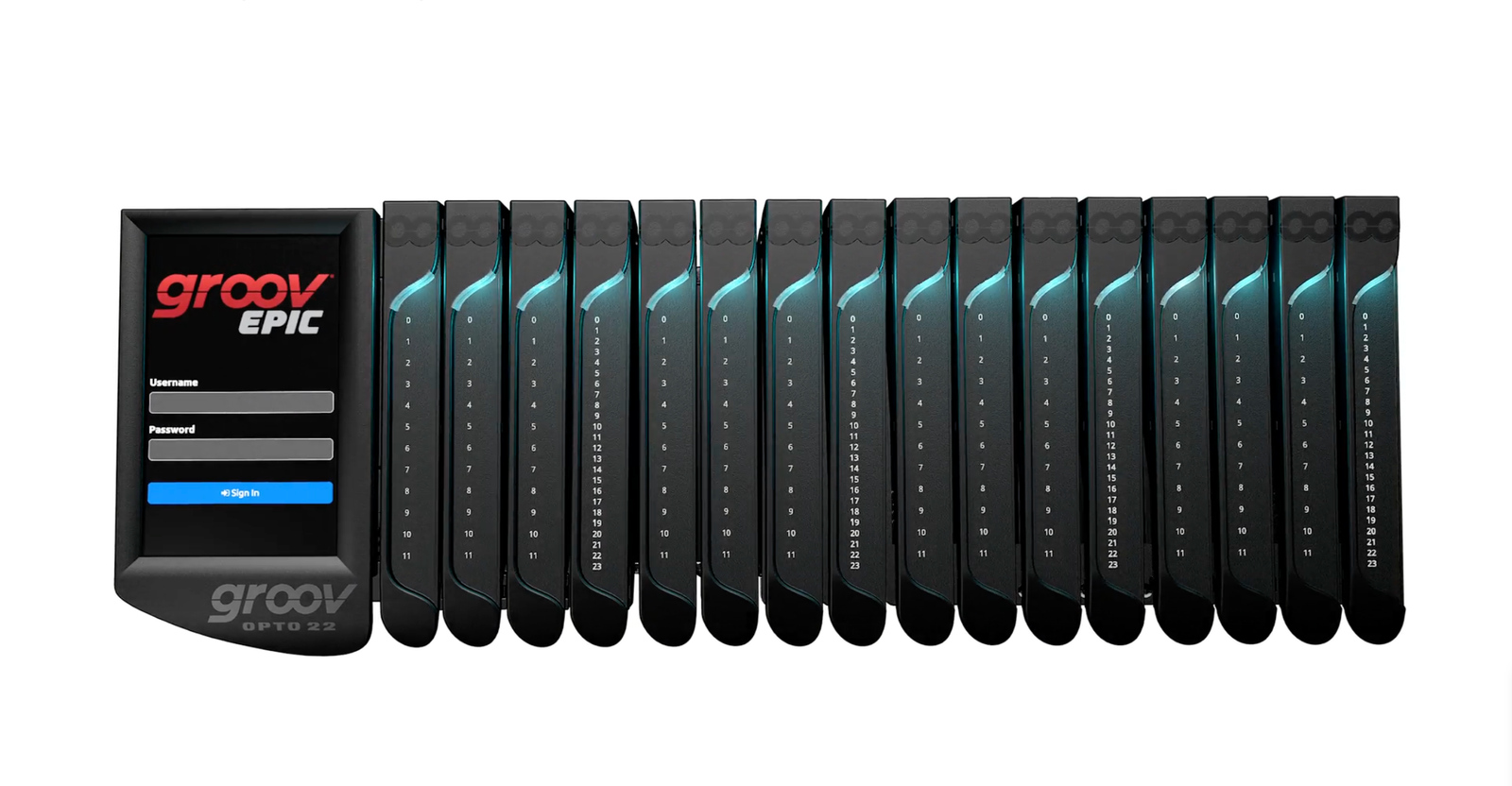

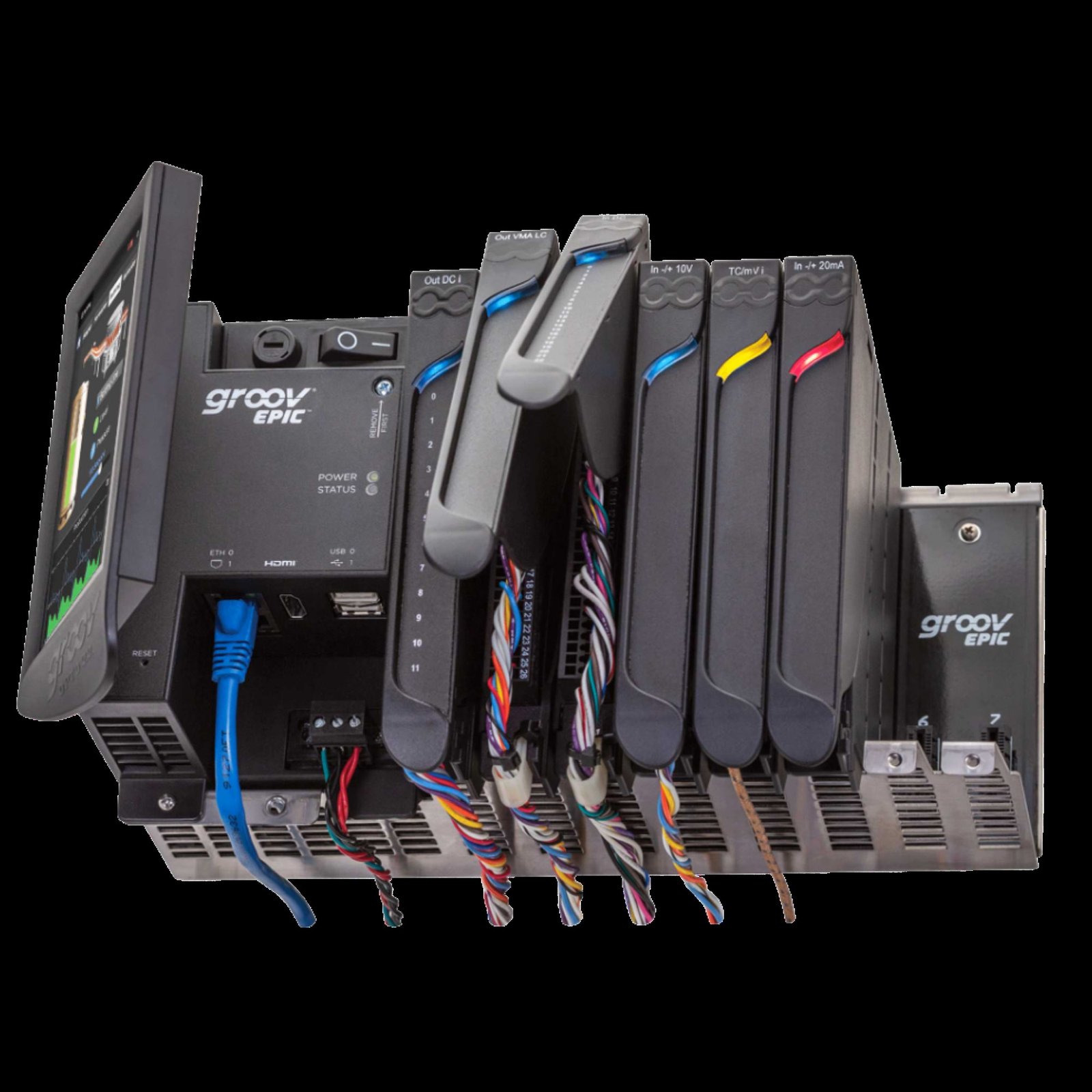

groov EPIC

groov EPIC® gives you guaranteed-for-life I/O, a flexible Linux®-based processor with gateway functions, high-resolution touchscreen, two independent network interfaces, USB and HDMI ports, and software including control programming options, groov View for device-independent HMI, Node-RED for simple data flows, and Ignition Edge® for OPC-UA drivers and MQTT/Sparkplug communications—and more. Key groov EPIC parts and features The GRV-EPIC-PR1 processor (or the GRV-EPIC-PR2 with expanded RAM and storage) has a Linux-based RTOS, gateway functions, and pre-loaded software Stainless steel chassis for 0, 4, 8, or 16 I/O modules Power supplies for AC, DC, and pass-through Guaranteed-for-life discrete, analog, and serial I/O modules with up to 24 channels per module, all configurable on the processor's integrated hi-res touchscreen, or from your mobile device or any web browser Security features built in, including dual independent network interfaces, firewalls, encryption, user authentication including LDAP, certificate management, VPN client, and more. Learn more in the groov Products Cybersecurity Design and Best Practices Technical Note . Learn how to configure groov EPIC and its software in our free online groov EPIC training at OptoU Online

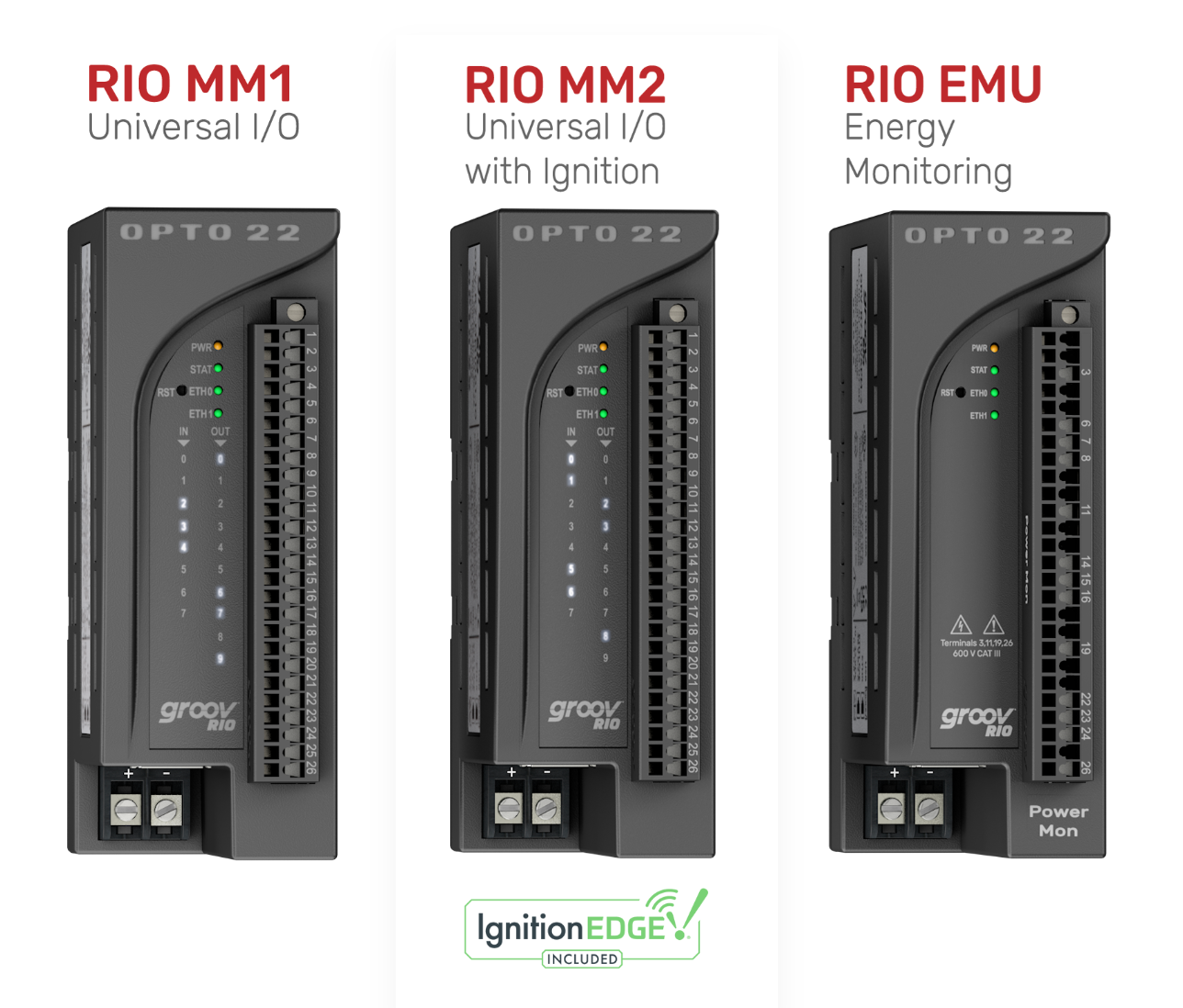

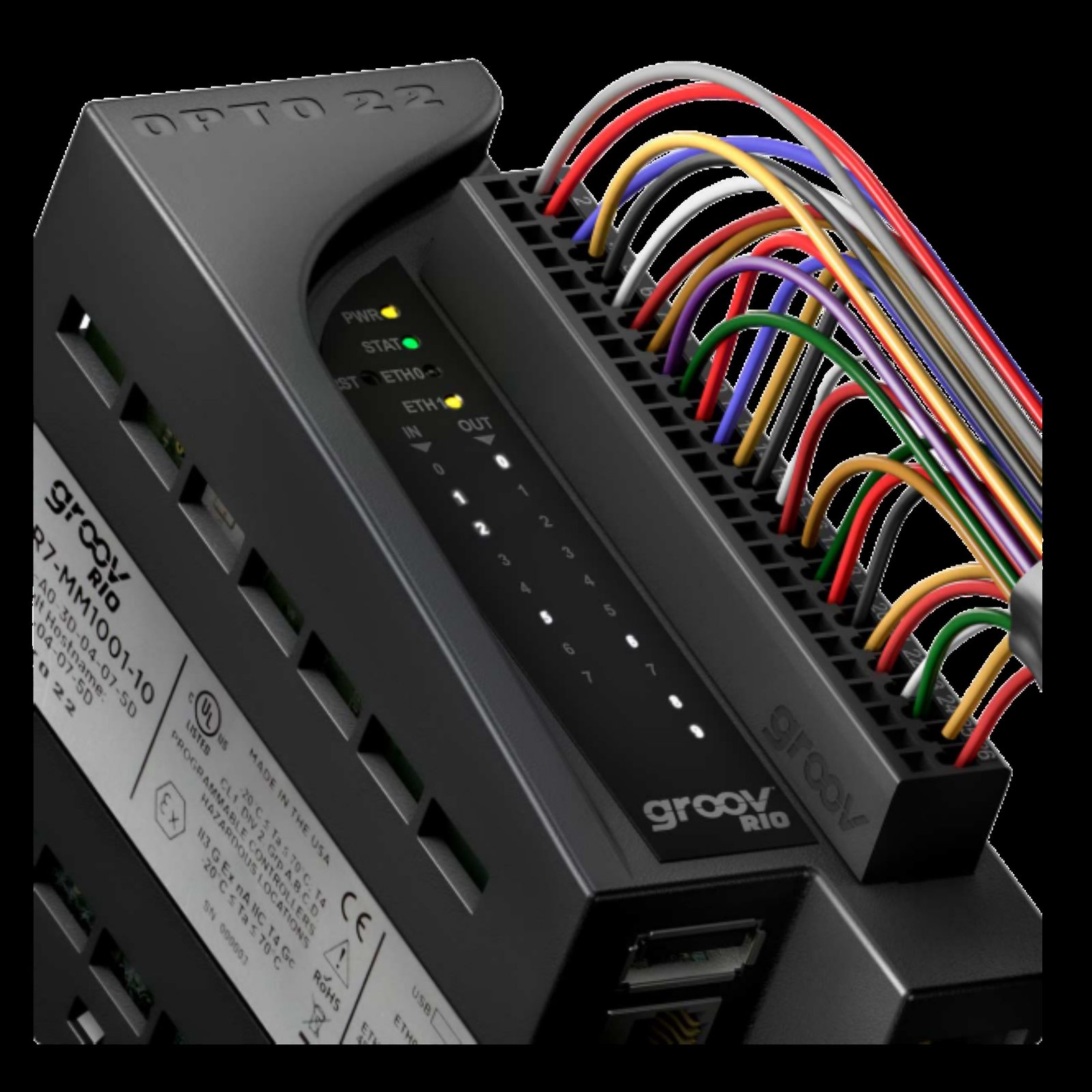

groov RIO

Compact industrial IoT remote I/O module for communicating sensor data between field devices and cloud platforms.

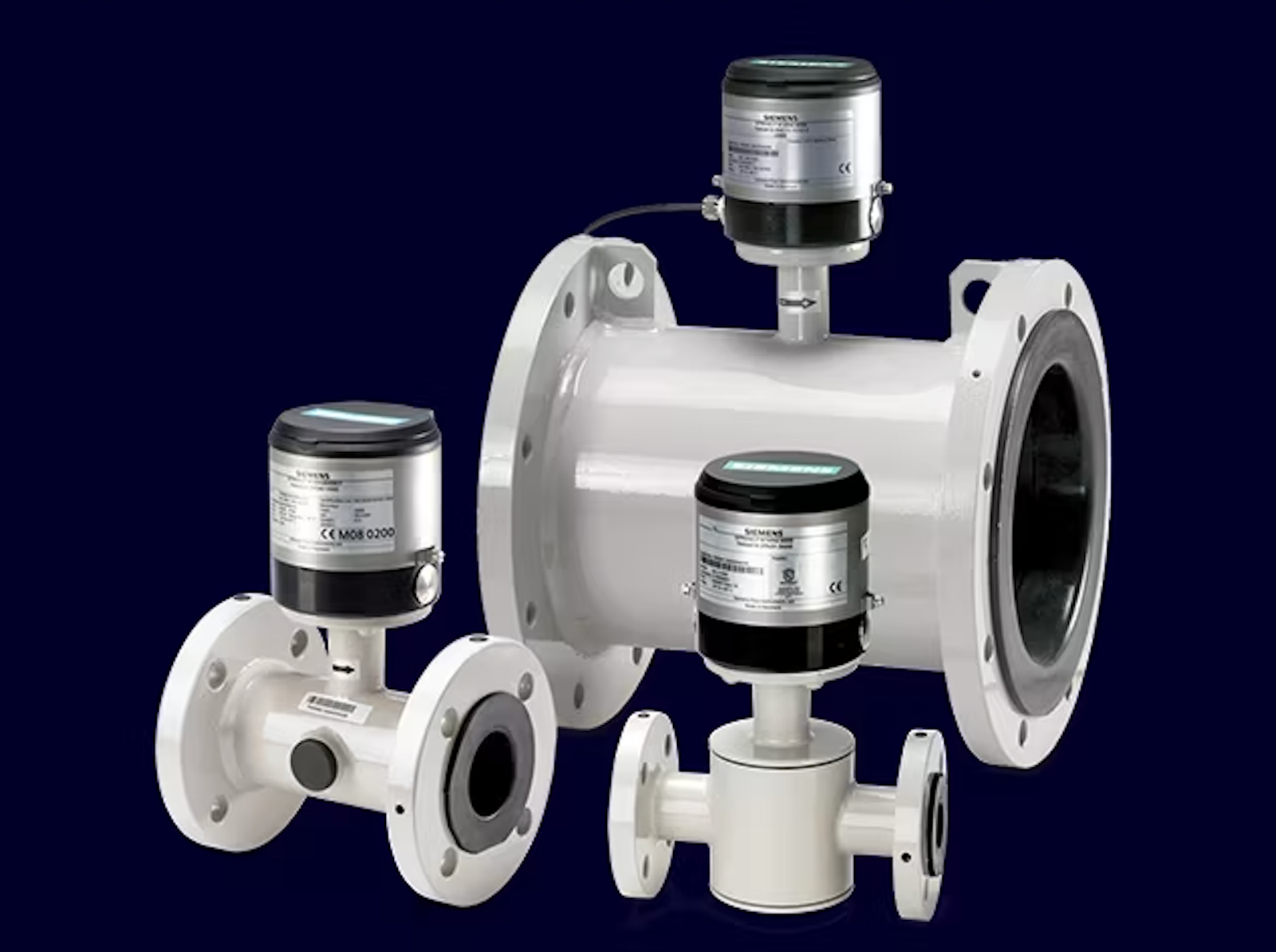

SITRANS FM MAG 8000

SITRANS FM MAG 8000 Install the battery-operated SITRANS FM MAG 8000 virtually anywhere. It delivers highly accurate, reliable water data and smart, maintenance-free performance. Why SITRANS FM MAG 8000? SITRANS FM MAG 8000 portfolio offers a basic version for standard water metering and an advanced version for detailed consumption profiling and network performance tracking. Two add-on wireless communication modules — IIoT and LW BLE — enable remote data transmission via LTE-M, NB-IoT or LoRaWAN networks. Paired with the SITRANS hub IQ web application, your measurements, configurations and verifications are securely accessible from anywhere. Key benefits Maximize revenue and reduce water loss High-precision bidirectional metering ensures you capture every drop for accurate billing. Simplify installation in any environment The IP68-rated meter allows safe underground burial in flood-prone areas without mains power. Reduce onsite visits By delivering comprehensive measurement data, alarms and diagnostics remotely, the meter significantly cuts down the need for costly, time-consuming onsite visits.

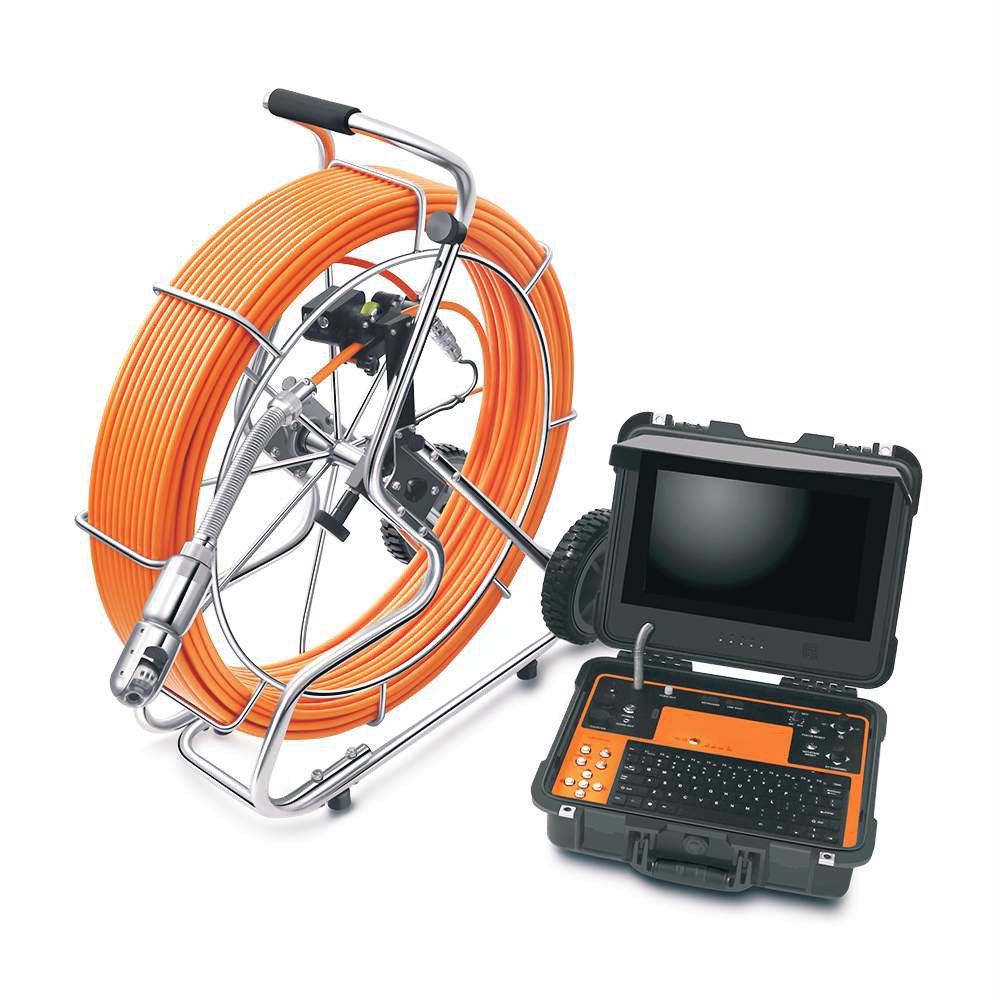

Sewer Camera

Self-leveling sewer inspection camera with high-resolution imaging and robust construction for harsh underground environments.

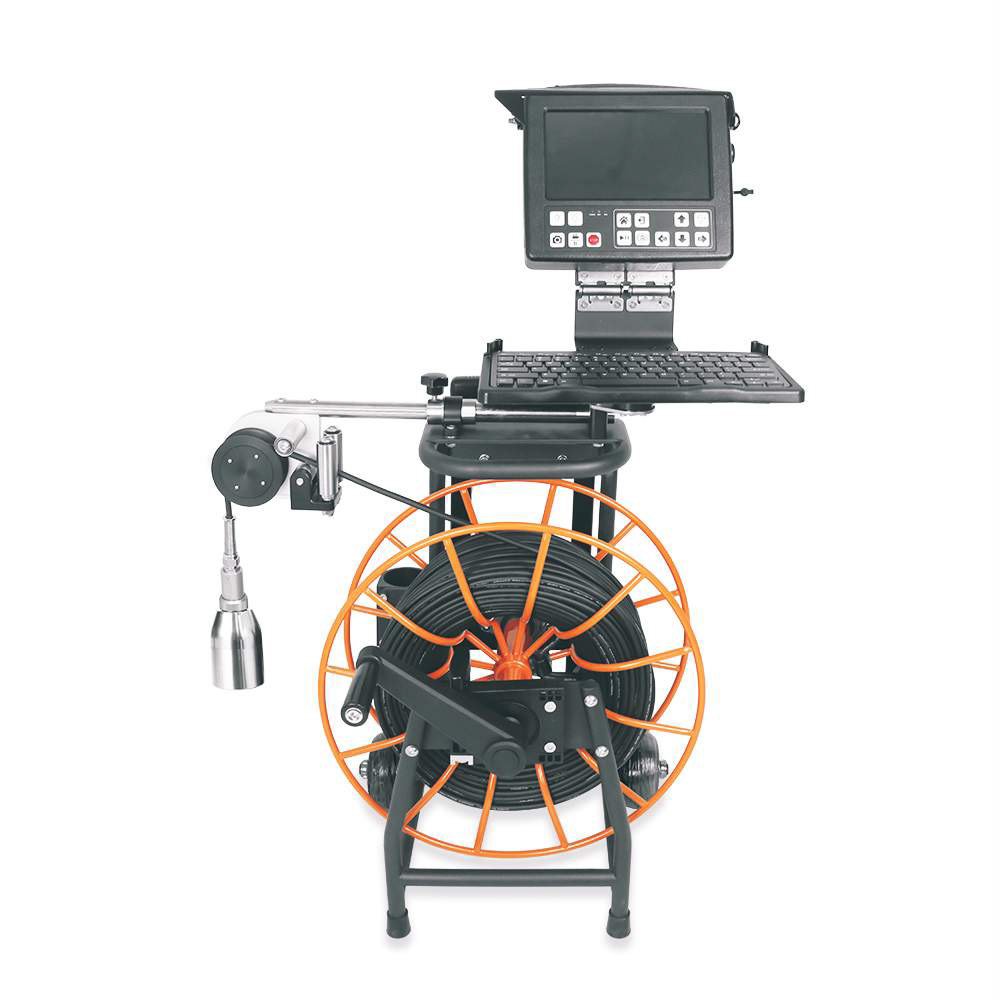

Vicam Camera - Custom

Portable push rod camera system for inspecting pipelines up to 100m, featuring LED lighting and digital recording.

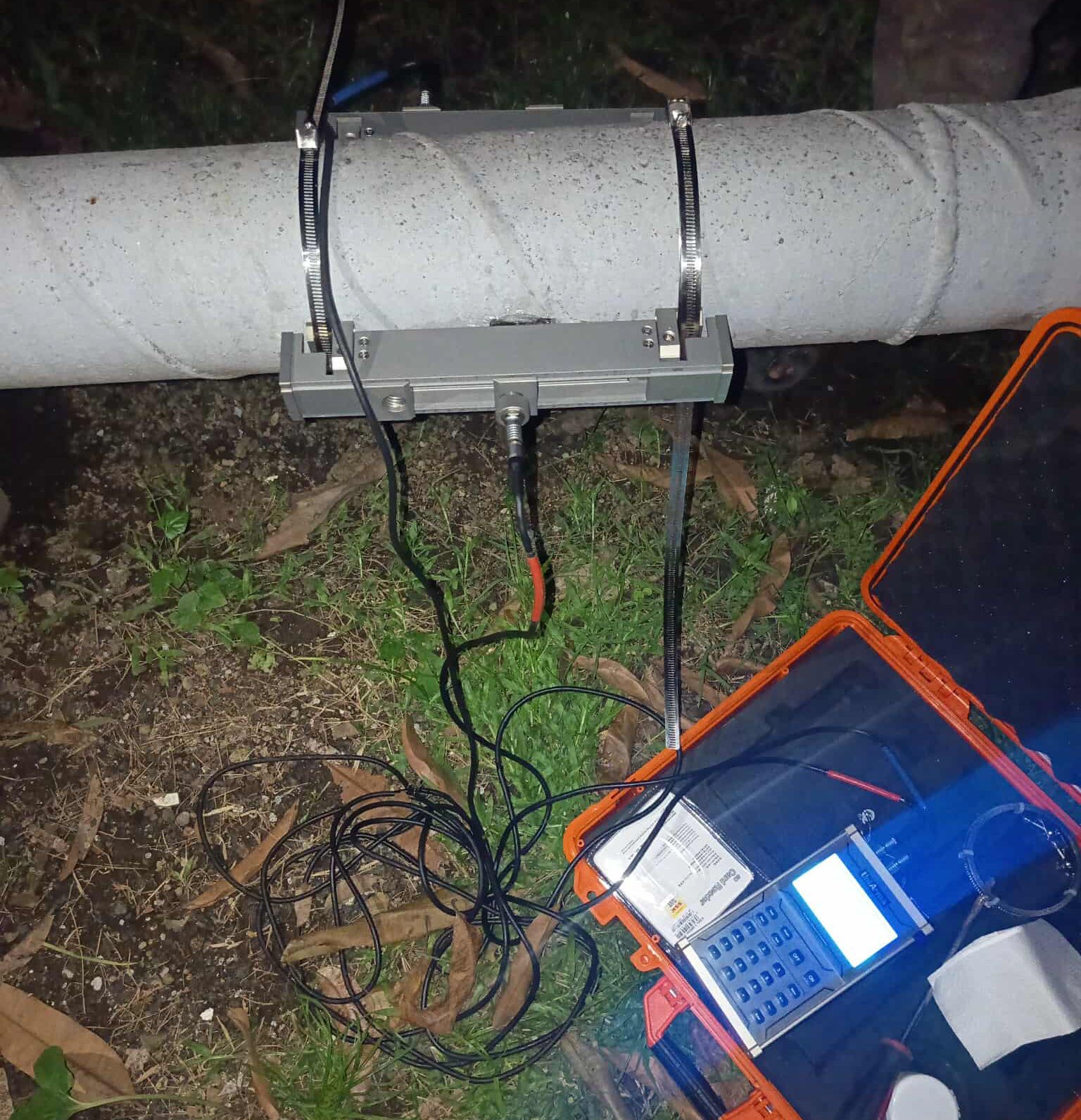

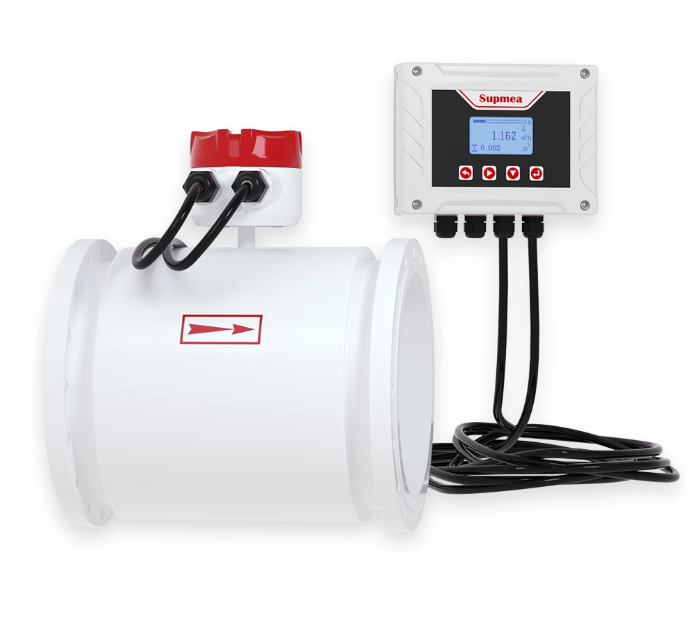

Supmea Flowmeters

Electromagnetic and ultrasonic flowmeters for accurate water flow measurement in distribution networks and treatment plants.

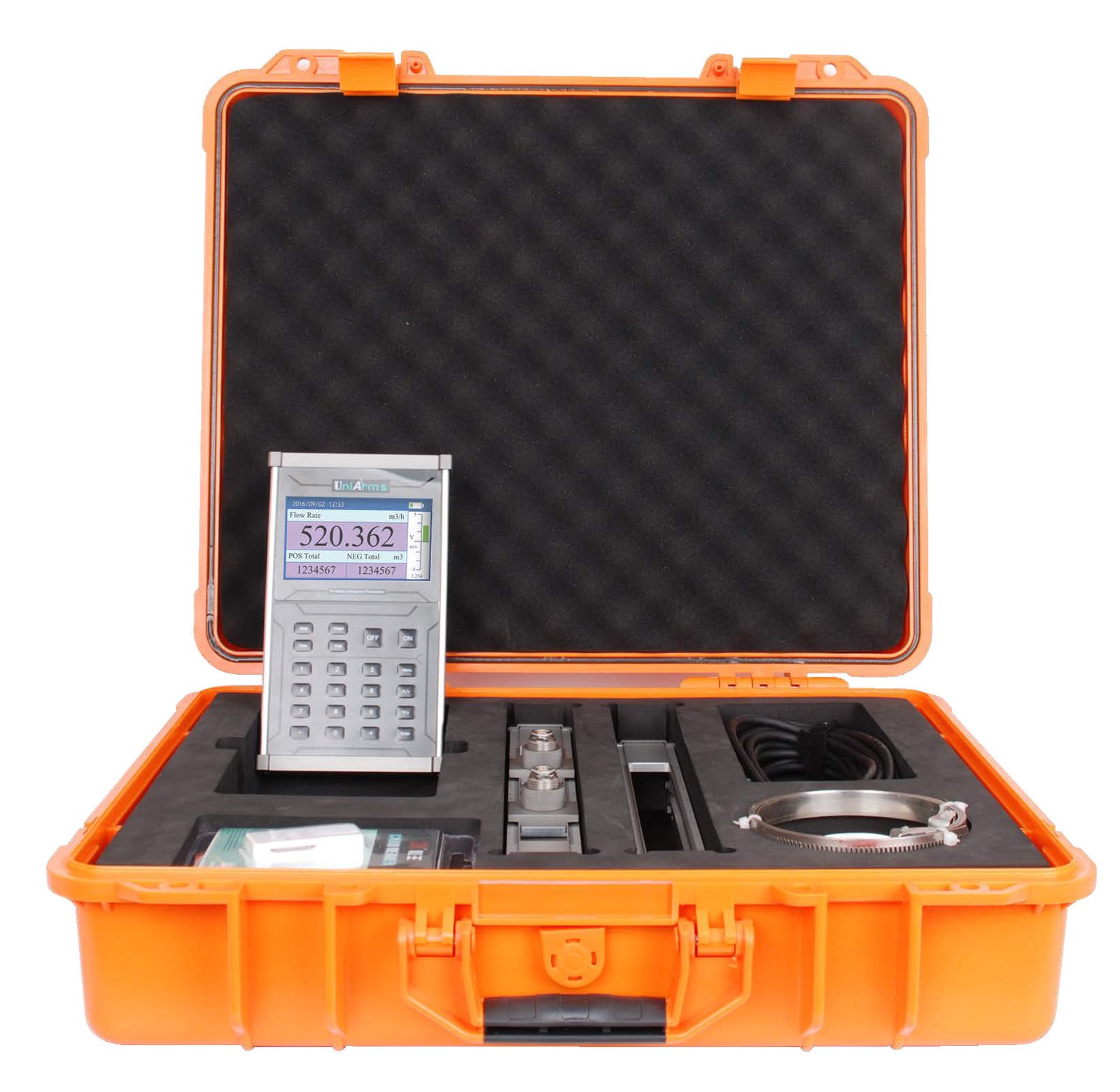

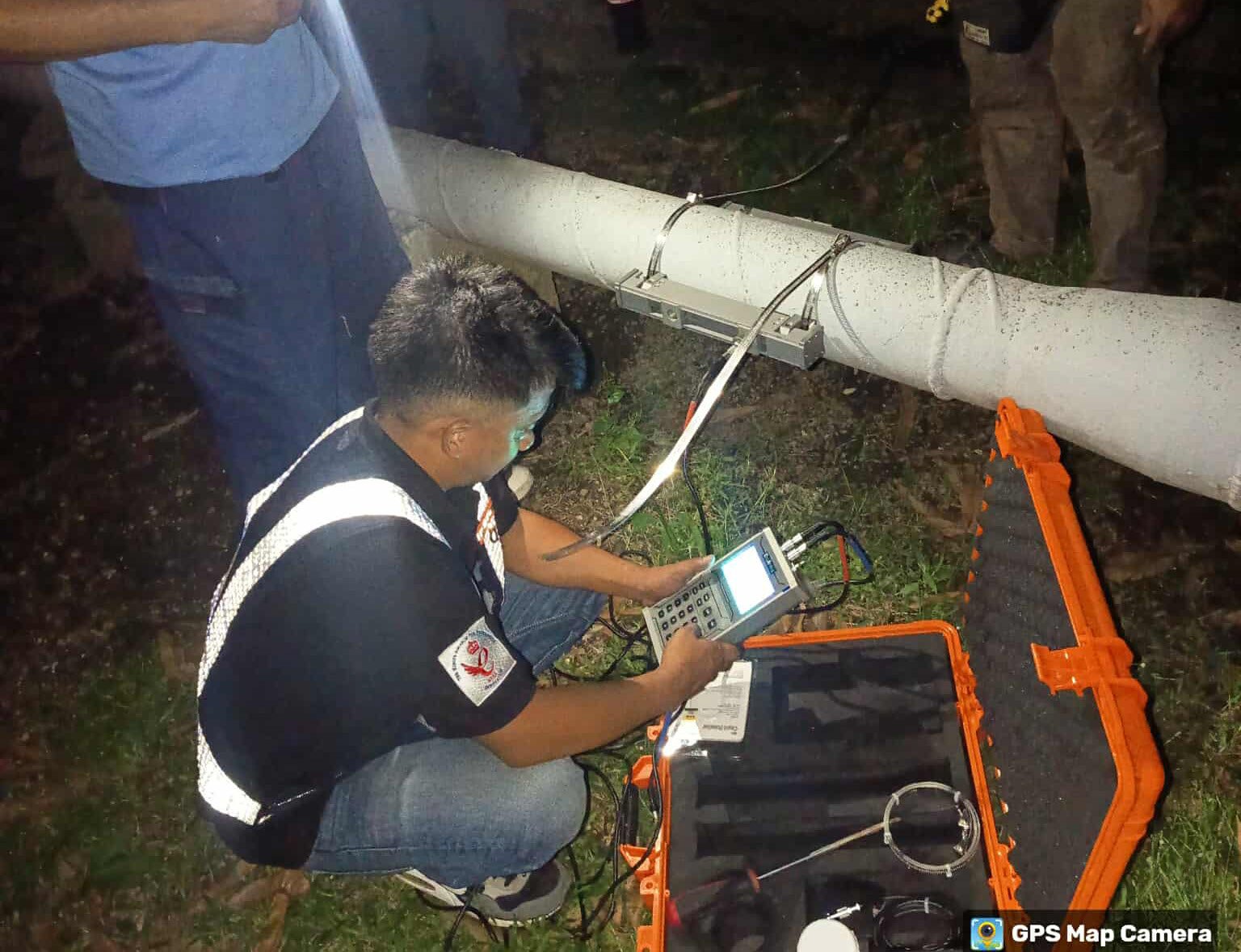

UniArms UA108P Portable Flowmeter

Portable ultrasonic flowmeter for on-site flow verification and temporary monitoring without pipe modifications.

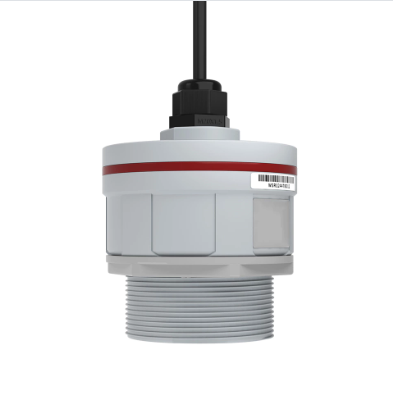

Supmea Level Transmitters

Reliable level transmitters for continuous water level monitoring in tanks, reservoirs, and open channels.

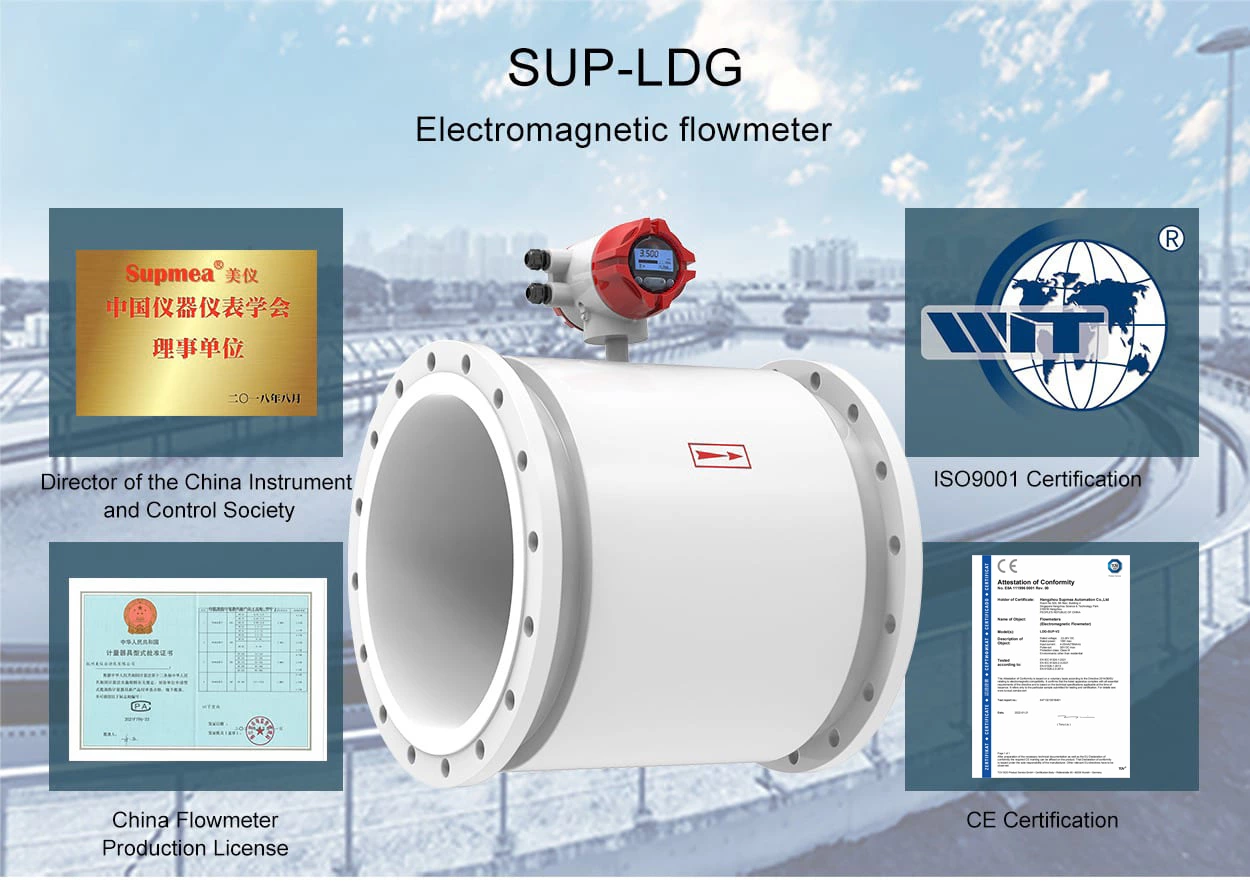

SUP-LDG Carbon steel body electromagnetic flow meter

SUP-LDG Electromagnetic meters are a leading choice to deliver the performance and precision your applications require. These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer Characteristics Pipe diameter: DN15~DN1000 Accuracy: ±0.5%(Flow speed > 1m/s) Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm Recommended value: ＞30μS/cm Turndown ratio: 1:100 Power supply: 100-240VAC，50/60Hz; 22-26VDC Minimal Maintainice. Has no moving parts or flow obstructiions, which virtually eliminates maintenance and pressure drops

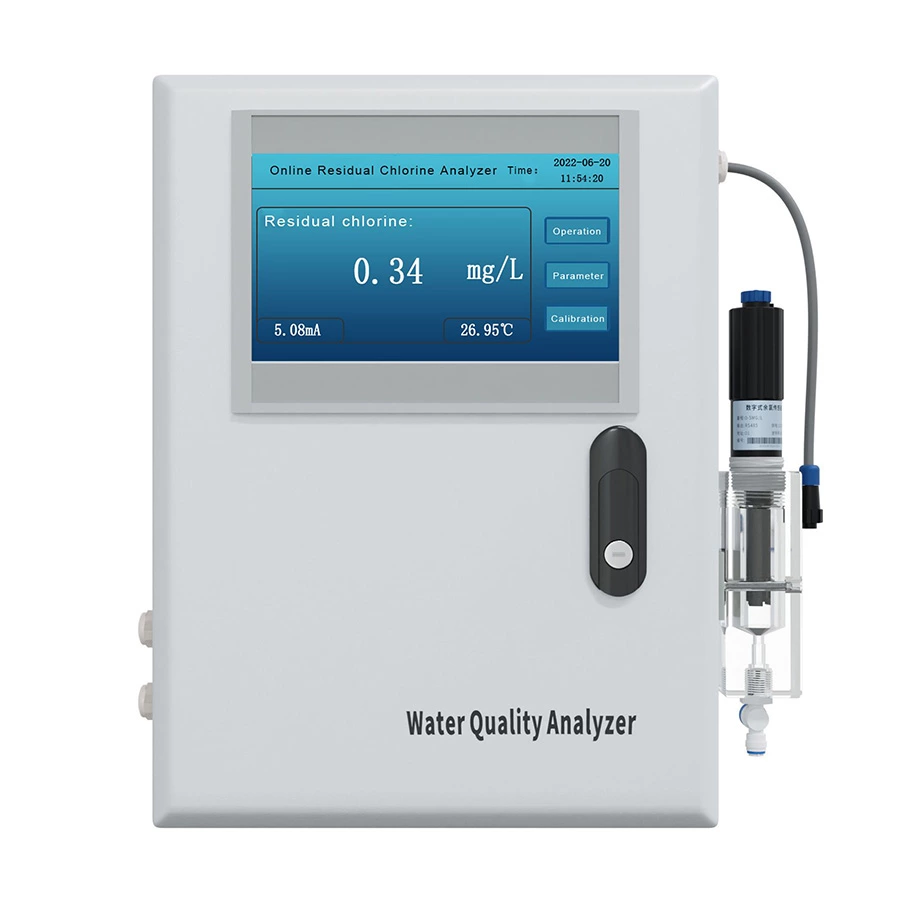

SUP-TRC400 Residual chlorine analyzer

SUP-TRC 400 Residual chlorine meter has a built-in sensor, which has the characteristics of high measurement accuracy, fast response time and low maintenance cost. Characteristics Measure range: Residual chlorine: (0~5) mg/L Temperature: (0.1~40.0)℃ Load Resistance: ≤750Ω Power supply: 220VAC Communication :MODBUS RS485
